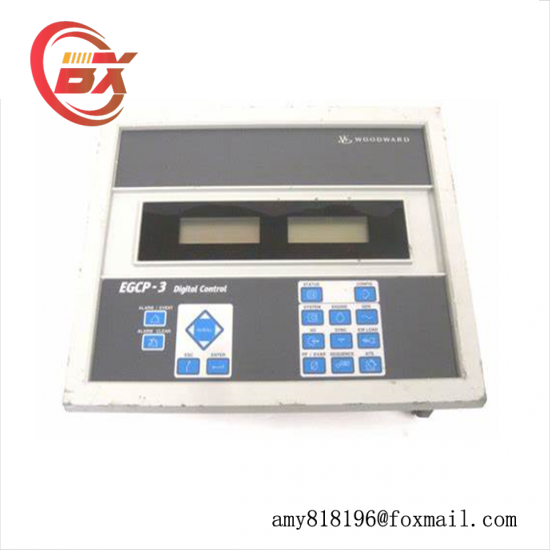

Woodward 8406-113 Engine Generator Control Interface Panel

Dimensions:282H x 359W x 135D mm

Speed Bias:4–20 mA, 0–5 V, PWM, or ±3 V output

Input Voltage:18-32 V dc

Operating Temperature:-20 to +70 °C

Slot Type:3

Serial Ports:N/A

Storage Temperature:-30 to +80 °C

Weight:4.3 kg (9.5 pounds)

    The WOODWARD 8406-113 is part of the renowned EGCP-3 Engine Generator Control Package series, offering unparalleled control and reliability for load sharing and synchronization tasks.

    Featuring a microprocessor-based design, this control panel delivers precise speed bias adjustments, supporting various output formats including 4–20 mA, 0–5 V, PWM, or ±3 V outputs, catering to diverse user needs.

    Designed with ease of use in mind, the interface is intuitive and accessible, allowing operators to monitor and control engine and generator functions efficiently.

    Equipped with discrete inputs and outputs, the panel enables real-time measurement of 12/24 VDC power supplies, 2-phase generator and 2-phase busbar voltages, and 1-phase generator currents, providing comprehensive system oversight.

    Compact and lightweight at 4.3 kg (9.5 pounds), the 8406-113 is easily portable and can be quickly integrated into existing systems without compromising on functionality or performance.
