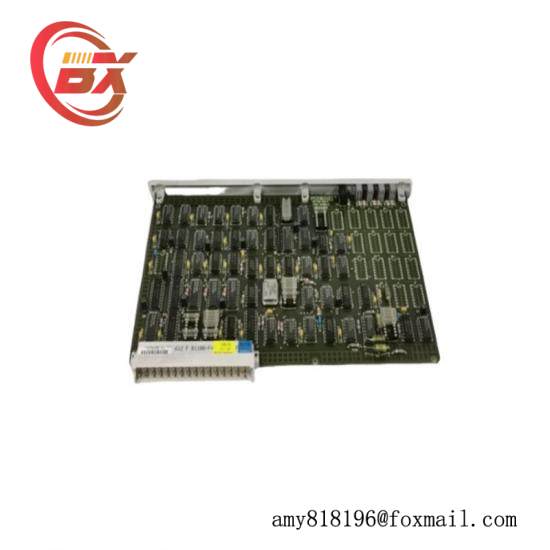

Siemens 6DS1104-8AA: Precision Clock Pulse Generator Module

Manufacturer:Siemens

Model:6DS1104-8AA

Series:Industrial Automation

Type:Clock Pulse Generator

Operating Frequency Range:1 Hz to 1 MHz

Output Voltage:Up to 100 Vpp

Output Current:Up to 10 mA

Supply Voltage:12 to 48 VDC

Environmental Rating:IP20

Mounting:Panel Mount

Dimensions (WxHxD):22.4 x 64.8 x 112.4 mm

Weight:0.2 kg

Compliance Standards:CE, UL, CSA

    The Siemens 6DS1104-8AA is engineered to deliver reliable and accurate clock pulses, crucial for coordinating complex industrial machinery operations.

    Featuring a wide frequency range from 1 Hz to 1 MHz, this module ensures compatibility across various automation systems, enhancing efficiency and productivity.

    With its adjustable output voltage up to 100 Vpp and current up to 10 mA, users can customize the performance to meet specific application requirements.

    Designed for 12 to 48 VDC power supply, the module is versatile, suitable for integration into diverse industrial environments.

    Offered in an IP20-rated panel mount design, it ensures protection against dust and light splashes, ensuring durability in industrial settings.

    Compact and lightweight at 0.2 kg, the module is easy to install and maintain, reducing downtime and improving operational flexibility.
