Operating Temperature Range:-40°C to 70°C (-40°F to 158°F)
Relative Humidity Limit:5% to 95% non-condensing
Power Dissipation:50W
Input Supply Voltage:120VAC / 240VAC, 1-Phase, 50-60Hz
Input Current:18A RMS
Output Voltage:120VAC / 240VAC, 3-Phase, programmable frequency 0-400Hz
Continuous Output Current:10A
Peak Output Current:30A
Bus Capacitance:1880 µF
Bus Overvoltage Protection:400VDC
Energy Absorption Capability:51J at 230VAC
Auxiliary Logic Supply Voltage:5V
Dimensions:198.12 x 144.27 x 98.1 mm
Weight:2.1kg (4.6lbs)

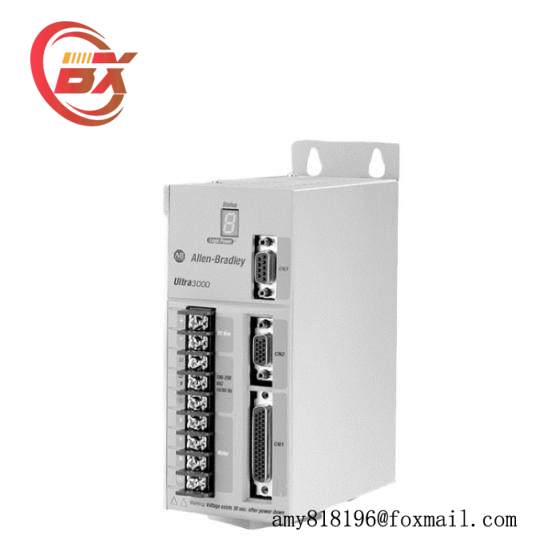

Engineered for robust performance, the Allen-Bradley 2098-DSD-020X Digital Servo Drive excels in handling heavy-duty applications, ensuring reliable operation in demanding industrial environments.
Featuring a Proportional+Integral+Derivative (PID) velocity regulator with a fast update rate of 250 µs, this drive achieves unparalleled precision in speed and position control.
With 8 optically-isolated digital inputs and 4 optically-isolated N.O. relay outputs, the 2098-DSD-020X provides versatile connectivity for integrating with various control systems and devices.
Supporting feedback position data from external encoders, the drive ensures accurate tracking and control of servo motors, making it ideal for applications requiring high positional accuracy.
Designed with a compact size of 7.8 x 5.68 x 3.89 inches (198.12 x 144.27 x 98.1 mm) and weighing 2.1kg (4.6lbs), the 2098-DSD-020X is easily integrated into existing machinery without compromising on performance.
Backed by Allen-Bradley’s commitment to quality, the 2098-DSD-020X comes with a robust fuse configuration including Class J and Class CC fuses, ensuring safety and reliability in every operation.
