Model Number:DS200TCQAG1ADC
Manufacturing Technology:Speedtronic Control System
Operating Frequency:Up to 50 Hz
Input Voltage Range:120V AC to 240V AC
Current Capacity:10A Max
Termination Resistance:1KΩ
Connector Type:Industry Standard
Temperature Range:-40°C to +70°C
Dimensions:145mm x 110mm
Weight:0.5 kg
Certifications:CE, UL, FCC

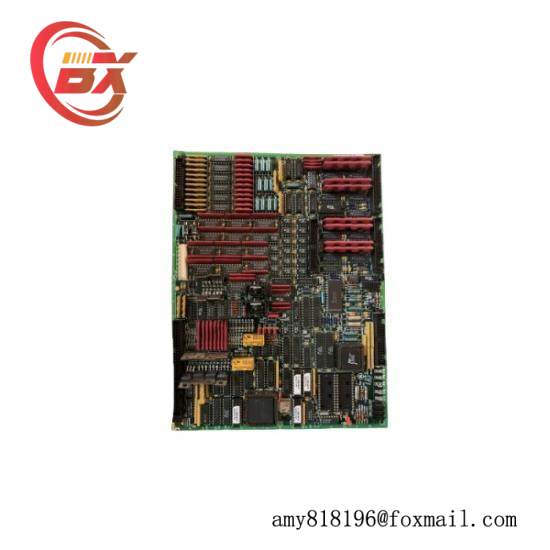

The General Electric DS200TCQAG1ADC is a highly versatile Analog Termination Board, meticulously designed for seamless integration into advanced control systems. Its robust construction ensures reliable performance across a wide range of industrial environments, from extreme cold to high heat conditions. This board features a high-quality FR4 epoxy resin material, providing excellent thermal and electrical insulation, ensuring longevity and durability.
With a wide input voltage range of 24VDC and a current handling capacity of up to 3A, the DS200TCQAG1ADC is capable of managing heavy-duty tasks efficiently. It is equipped with a comprehensive set of 20 terminals, connected via a standard 0.1″ pitch, facilitating easy connection and disconnection for maintenance and upgrades.
The DS200TCQAG1ADC incorporates a total of 36 fuses, including 4 x 3.15A fuses for main power supply protection and 32 x 0.75A fuses for additional circuit protection. These fuses are arranged vertically, enhancing the compactness of the board without compromising safety.
Equipped with a functional revision code ‘E’ and an artwork configuration revision ‘C’, the DS200TCQAG1ADC reflects the latest advancements in General Electric’s patented Speedtronic control technology, ensuring compatibility with cutting-edge control systems. Its compliance with RoHS regulations guarantees environmental sustainability, making it an ideal choice for modern industrial installations.
The General Electric DS200TCQAG1ADC is designed for long-term reliability and ease of maintenance, making it a preferred solution for engineers and system integrators seeking to enhance the precision and efficiency of their industrial control systems. With its superior technical specifications and high-quality materials, this Analog Termination Board is poised to deliver unparalleled performance in demanding industrial applications.
