Number of Terminal Blocks:2
Terminals per Block:95 signal wires
Number of 50-pin Connectors:3
Connector IDs:JFF, JFG, JFH
Bayonet Connectors:Present
Jumpers:5
Standard Hardware Components:Rectifiers, Diodes, Capacitors, Integrated Circuits
Assembly Voltage Limitation Devices:Standardized for various voltages
Operating Temperature Range:-40°C to +70°C

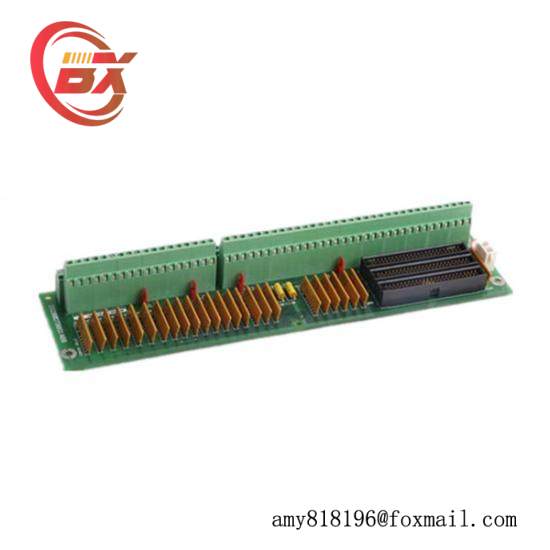

Engineered for high-reliability industrial environments, the DS200DTBBG1A Terminal Digital Connector Board from GE-FANUC seamlessly integrates with existing systems to enhance operational efficiency.
Each of the two terminal blocks offers 95 signal wire terminals, providing ample connection points for signal transmission and processing.
Equipped with three 50-pin connectors, this board facilitates versatile connectivity options, supporting a wide range of industrial protocols and standards.
Identified by JFF, JFG, and JFH, the connectors ensure compatibility with specific applications, optimizing system integration.
Bayonet connectors on the board offer secure and quick connection solutions, ensuring reliability even under harsh conditions.
The inclusion of 5 jumpers allows for customization and fine-tuning of electrical circuits, catering to diverse operational needs.
Manufactured with advanced materials, the DS200DTBBG1A is designed to withstand extreme temperature ranges from -40°C to +70°C, ensuring stable performance across varied industrial settings.
