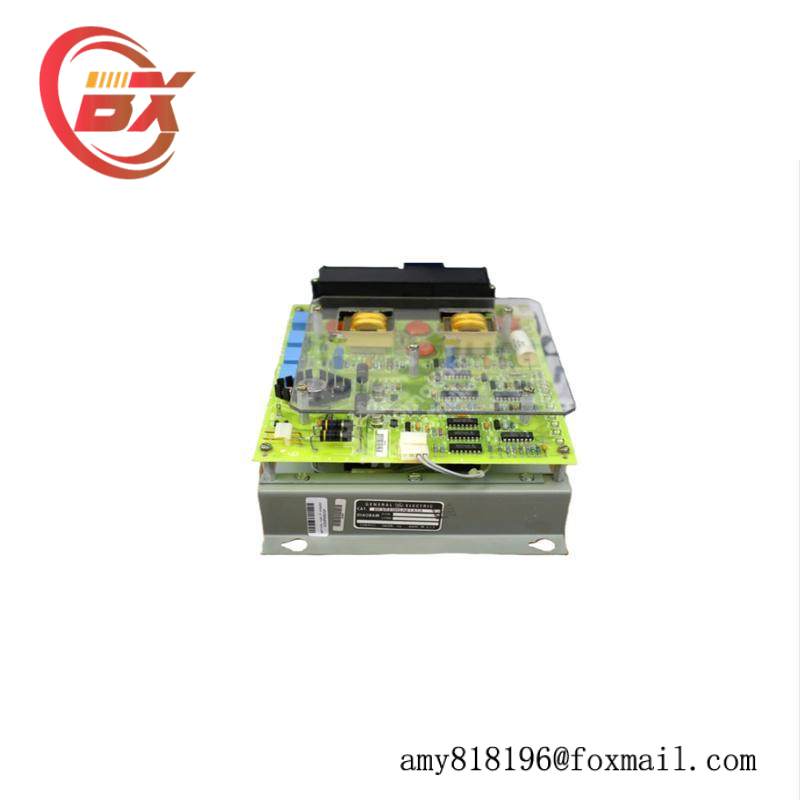

Brand:General Electric (GE)
Model:DS3820MSAB1A1A
Technology Type:Circuit Board
Series:Mark IV DS3800
Functionality:Power Management, Control Systems
Jumper Switches:10
Test Points:6
Transistors:2
Integrated Circuits:Multiple, including Oscillating Chips, Hex Buffers, J-K Negative Edge Triggered Flip-Flops
Connectors:2, including a 6-pin header and a PCB mating connector
Technical Support:Provided by GE, including manuals and datasheets
Crafted from robust materials for durability and long-lasting performance, the GE DS3820MSAB1A1A circuit board is designed to withstand the harsh conditions typically found in industrial environments.
Features an advanced design that integrates a comprehensive set of components, ensuring seamless integration with Mark IV DS3800 systems.
Equipped with a total of 10 jumper switches and 6 test points, allowing for precise control and diagnostic capabilities, crucial for maintaining optimal system operation.
Incorporates 2 transistors and a variety of integrated circuits, including oscillating chips, hex buffers, and J-K negative edge triggered flip-flops, enhancing the board’s functionality and efficiency.
Comes with two connectors, facilitating easy installation and connection to other components, ensuring a smooth and efficient setup process.
Benefit from comprehensive technical support provided by General Electric, including access to manuals and datasheets, ensuring a hassle-free experience during the implementation and maintenance phases.
