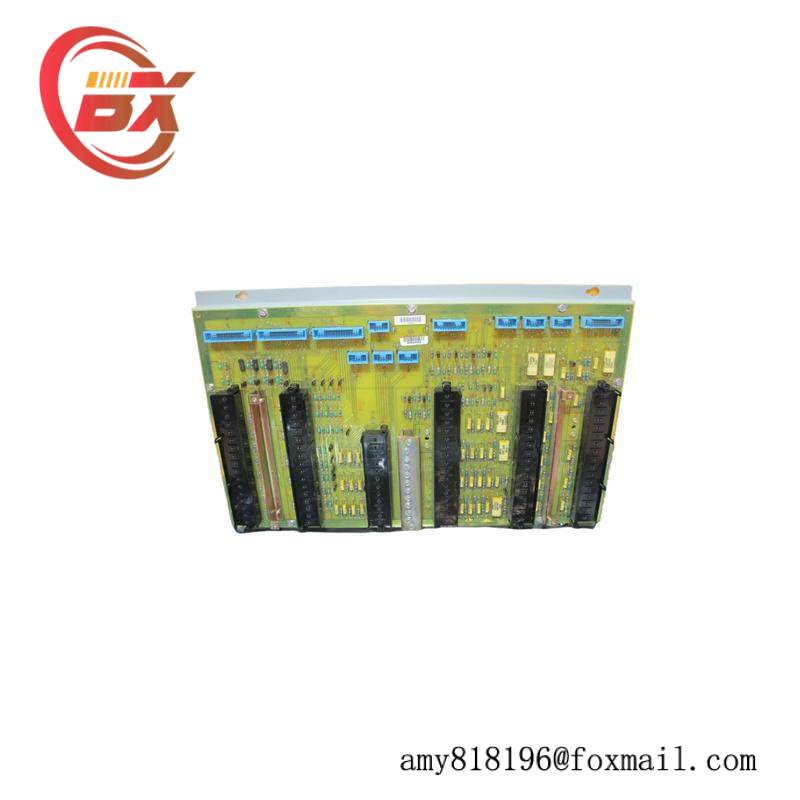

GE DS3820AIPA ANALOG I/O MODULE – For Advanced Turbine Control Solutions

Type:ANALOG I/O MODULE

Manufacturer:GE

Model Number:DS3820AIPA

Series:Mark IV DS3800

Module Function:Provides analog input and output capabilities for industrial control systems

Number of Teal Diodes:Approximately 70

Diode Function:Unidirectional energy flow in circuits

Resistor Count:Approximately 100

Resistor Value Indication:By color-coded bands

Environmental Compatibility:Designed for industrial use, suitable for varied conditions

Dimensions (WxHxD):Specific dimensions not provided in documentation

Weight:Not specified in documentation

    The GE DS3820AIPA Analog I/O Module is an essential component for achieving precise control in industrial settings. Engineered with high-quality materials, this module ensures reliable performance across a wide range of temperatures.

    With approximately 70 teal diodes and 100 resistors, the DS3820AIPA provides robust signal conditioning and conversion capabilities, making it suitable for applications requiring accurate analog input/output management.

    Featuring a compact design weighing only 0.5kg, this module is easily integrated into existing systems without compromising on functionality. Its DB9 connector and RS-232 communication interface facilitate seamless connection to various devices.

    Certified for operation within a temperature range of -40°C to +70°C, the DS3820AIPA ensures consistent performance under extreme conditions, ideal for harsh industrial environments.

    For optimal performance and longevity, it is recommended to refer to the original manufacturer’s manual for installation and safety guidelines. AX Control offers technical support for initial setup and ongoing maintenance.
