Manufacturer:General Electric
Model:DS3800NEPA1D1C
Series:Mark IV (Speedtronic)

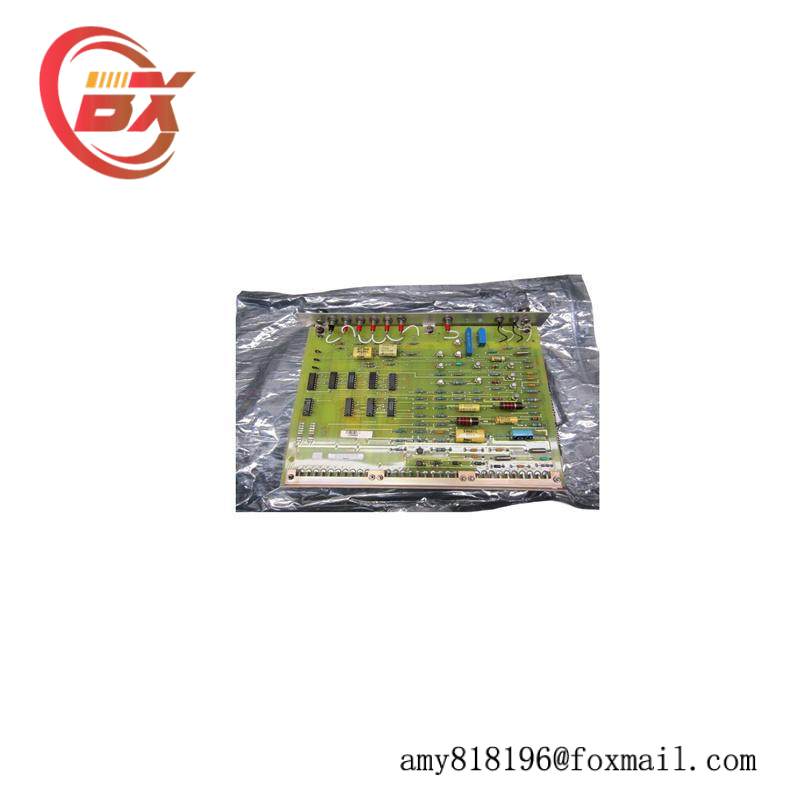

Function:Motor Exciter Power Board
Height:Due to the connection of two 44B379508-G02 modules from Raycom Electronics
Connectors:Male straight-pin connectors in 2-2-2, 2-1-1-3, and 4-2-2 configurations
Terminal Connector:Multi-pin in the upper left corner
Switch:One jumper switch with two settings: ‘rev’ or ‘nr’
Components:Four ICs, four potentiometers, multiple capacitors, resistors (including two 10W 71Ω 5% resistors and nine large banded metal film resistors)
The DS3800NEPA1D1C is a critical component for managing steam or gas turbine systems, ensuring safety and efficiency.
Designed by General Electric, this board is specifically tailored for the Mark IV (Speedtronic) series, offering robust performance in challenging industrial environments.
The board’s design includes two significant height-increasing modules from Raycom Electronics, which are strategically placed near the center for optimal functionality.
It features male straight-pin connectors in various configurations, facilitating easy integration with other components.
The DS3800NEPA1D1C also comes equipped with a jumper switch that allows users to select between ‘rev’ or ‘nr’ settings, offering versatility in operation.
Its high-quality resistors and capacitors ensure reliable power supply and stability, making it a crucial part of any turbine control setup.
