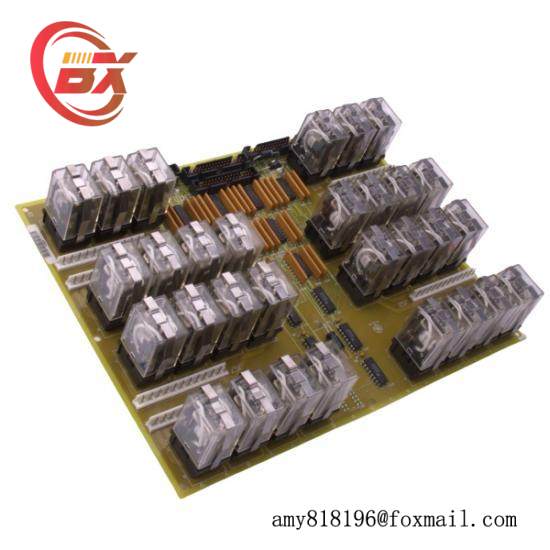

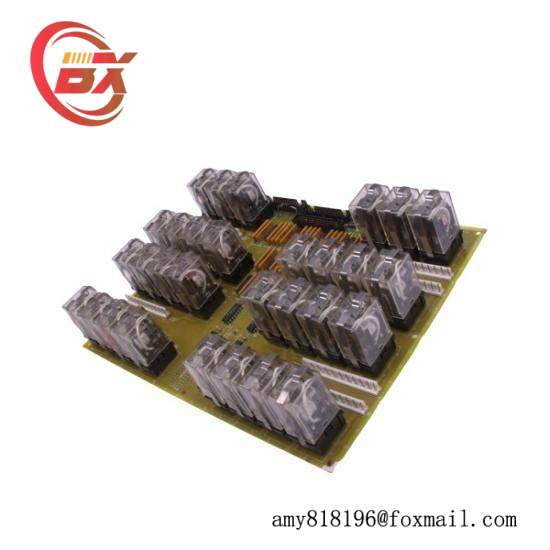

GE DS200TCRAG1A – High-Performance Relay Output Module for Turbine Control Systems

Alphanumeric Part Number:DS200TCRAG1A

Functional Product Description:Relay Output Board

Functional Product Acronym:TCRA

PCB Coating Style:Normal Coating

1st Functional Revision:A

Dimensions (Width x Height):8.5 inches x 11 inches

Number of Plug-in Relays:30

Number of Connectors:{“34-pin”:”4″,”12-pin”:”4″}

Connector IDs:{“JOT”:””,”JOR”:””,”JOS”:””,”JO”:””,”JS3″:””,”JS4″:””,”JS5″:””,”JS6″:””}

Artwork Revision:A

Data Sheet:GEH-6153

Weight:Due to the inclusion of 30 plug-in relays and the nature of the board’s construction.

    Engineered for seamless integration into General Electric’s Mark V Series of industrial control systems, the DS200TCRAG1A is a reliable choice for enhancing operational precision.

    This relay output board is specifically designed for applications requiring high-speed switching and control, ensuring that your industrial processes run smoothly and efficiently.

    Featuring normal coating for enhanced durability and resistance to harsh industrial conditions, the DS200TCRAG1A is built to withstand the test of time and varying environmental pressures.

    With 30 plug-in relays, it offers flexible connectivity and customization options to meet diverse control needs, making it an adaptable solution for a wide range of industrial applications.

    Each connector is uniquely identified to simplify installation and maintenance, reducing downtime and streamlining your system management processes.

    Backed by extensive research and development, the DS200TCRAG1A is a testament to GE‘s commitment to innovation in industrial automation, delivering unparalleled performance and reliability.
