Sku:E12940
GE Number:469-P5-HI-A20-E
Motor Management Type:Relay
Current Transformers:5 CT Secondaries
Input Voltage Range DC:90 – 300 Volt DC
Input Voltage Range AC:70 – 265 Volt AC
Analog Outputs:4
Current Rating:390/500 MA (MAX)
Line Voltage:90-300VDC, 70-265VAC
Enclosure Rating:20-X
Frequency Range:48-62 HZ
Phase CT:5A
Overvoltage Category:II
Insulation Voltage:300 V
Pollution Degree:2

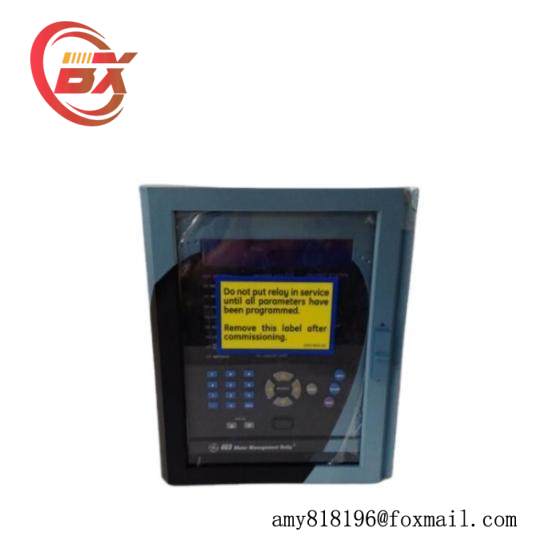

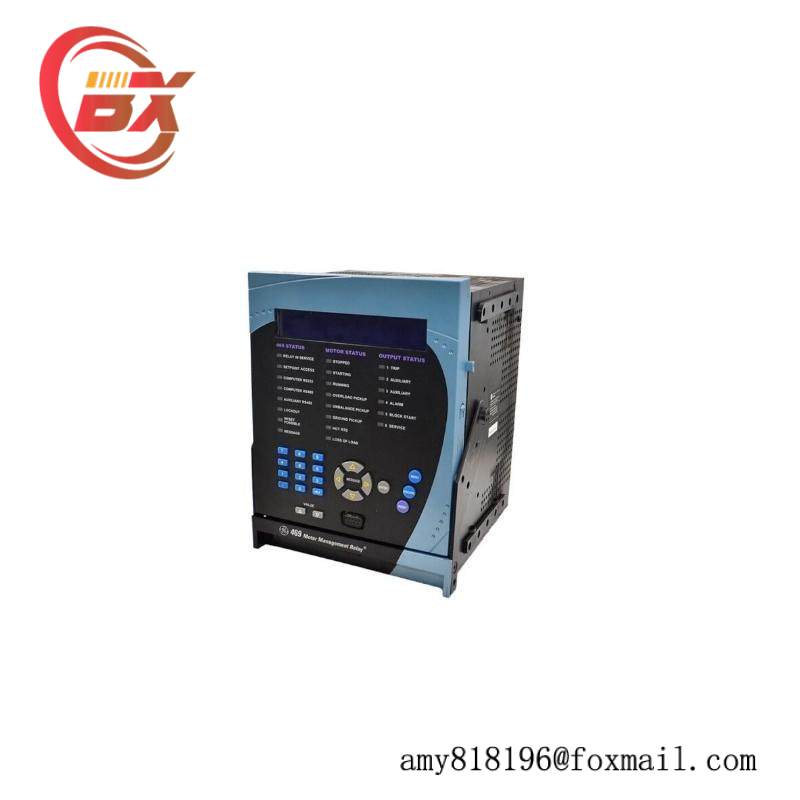

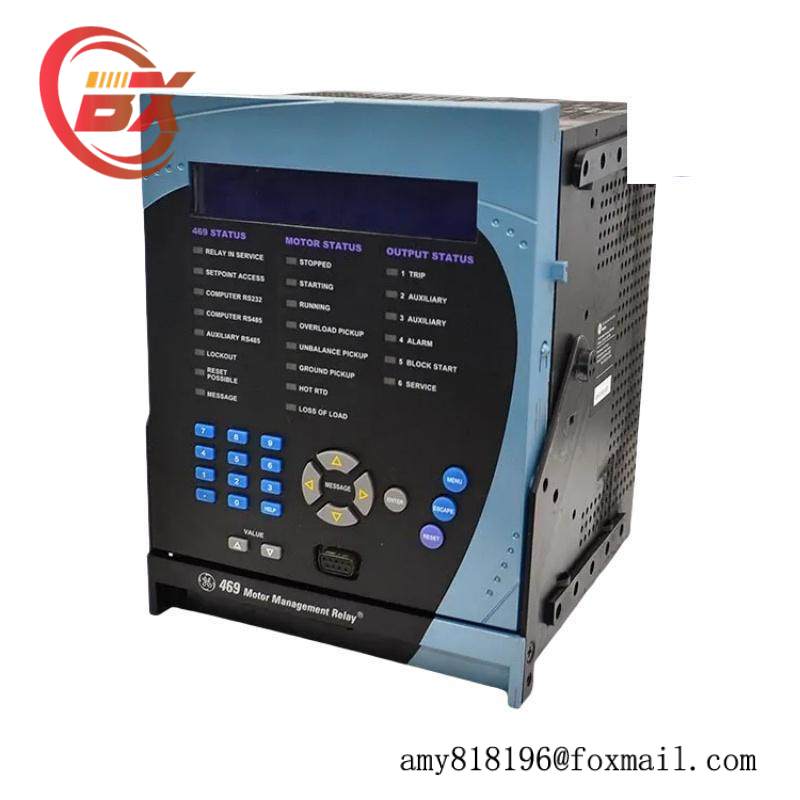

The GE 469-P5-HI-A20-E is a cutting-edge Motor Management Relay designed specifically for industrial applications. It excels in protecting and managing medium to large motors with its advanced monitoring, control, and protection features.
This relay is equipped with five current transformer secondaries and enhanced front panel controls, providing a comprehensive solution for motor management. Its ability to monitor and safeguard motors ensures optimal performance and longevity.
Designed for harsh environments, the 469-P5-HI-A20-E features a conformal coating that protects against chemical exposure, making it ideal for use in demanding industrial settings. The device operates efficiently over a wide range of temperatures, ensuring reliability under varying conditions.
The relay includes multiple RTD inputs that can determine the actual temperature and the hottest point of the motor system. These RTDs are composed of 100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, and 100 ohm Platinum, offering precise temperature monitoring.
With an enhanced LCD display and four analog outputs, the 469-P5-HI-A20-E provides clear and detailed information about motor status and performance. This makes it easier for operators to manage and maintain their motors effectively.
