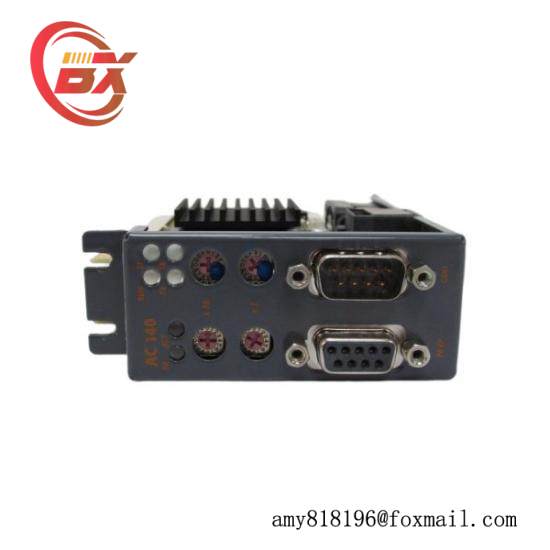

B&R 8AC122.60-3 Resolver Interface 10 kHz – Advanced Industrial Control Module

Resolution:10 kHz

Operating Voltage:DC 24 V

Input Current:Max. 5 mA

Output Type:Digital

Signal Processing Time:Less than 10 μs

Temperature Range:-20°C to +60°C

Communication Interface:RS-485

Power Consumption:0.5 W

Connection:2-wire, shielded twisted pair cable

    The B&R 8AC122.60-3 Resolver Interface is a critical component for high-precision applications in industrial automation, designed to convert resolver output signals into digital outputs for seamless integration into control systems.

    This interface is built to withstand harsh industrial environments, featuring an operating temperature range from -20°C to +60°C and a storage temperature range from -40°C to +85°C, ensuring reliability under extreme conditions.

    Equipped with a BNC connector, the 8AC122.60-3 Resolver Interface offers secure and straightforward connection options, facilitating easy integration into existing systems without compromising on performance.

    With its compact size of 60 x 120 x 95 mm and lightweight design weighing only 0.2 kg, this interface is portable and can be conveniently installed in tight spaces within industrial machinery.

    The interface’s power consumption of just 0.5W contributes to energy efficiency, reducing operational costs and environmental impact without sacrificing performance.
