Product Type:Bus Coupler
Model:BK5220
Extended Product Type:Other
Operating Modes:Bit Strobe, Polling, Cyclic, Change of State (COS)
Number of I/O Stations:64
Bus Terminal Count:64
Max. Number of Bytes Fieldbus:512 input, 512 output
Digital Peripheral Signals:1,020 inputs/outputs
Power Supply:24V DC (-15 %/+20 %), through bus cable, 11…25V (DeviceNet spec.)
Input Current:70mA + (total K-bus current)/4, 500mA max.
Current Supply K-bus:1750mA
Weight:Approx. 130g

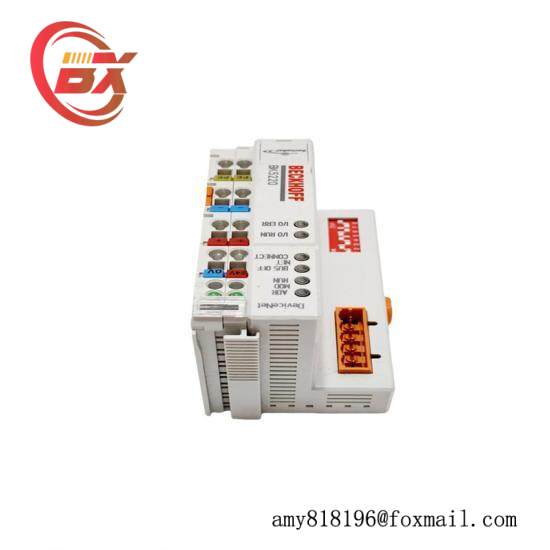

The BK5220 Bus Coupler from Beckhoff is engineered for superior performance in industrial automation systems. It seamlessly connects multiple I/O stations, ensuring reliable data exchange within DeviceNet networks.
With its extensive capability to handle up to 64 I/O stations and a max. of 512 bytes per fieldbus, this coupler supports high-speed communication essential for complex factory operations.
Featuring a robust design that includes support for diverse operating modes such as Bit Strobe, Polling, Cyclic, and Change of State (COS), the BK5220 ensures flexible and efficient data processing.
The coupler’s capacity to manage up to 1,020 digital peripheral signals enables seamless integration with a wide range of devices, enhancing system scalability and adaptability.
Equipped with a 24V DC power supply (with compliance to DeviceNet specifications) and a weight of approximately 130g, the BK5220 is designed for ease of installation and maintenance, contributing to a streamlined operational environment.
