Mounting:Occupies two slots in standard INFI 90 module mounting unit
Ports:Two full duplex serial EIA standard RS-232-C
Memory:256 kbytes ROM, 512 kbytes RAM, 80 kbytes NVRAM
Communication Rates:50 to 19,200 baud
Power Requirements:+5 VDC @ 4.2 A; 21 W typical, +15 VDC @ 40 mA; 0.6 W typical, -15 VDC @ 20 mA; 0.3 W typical

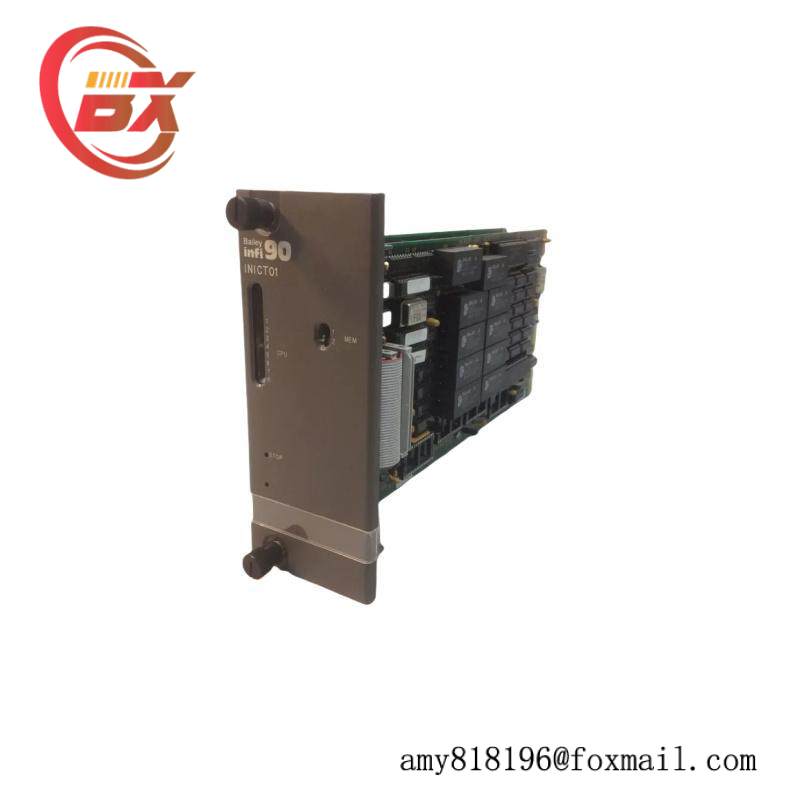

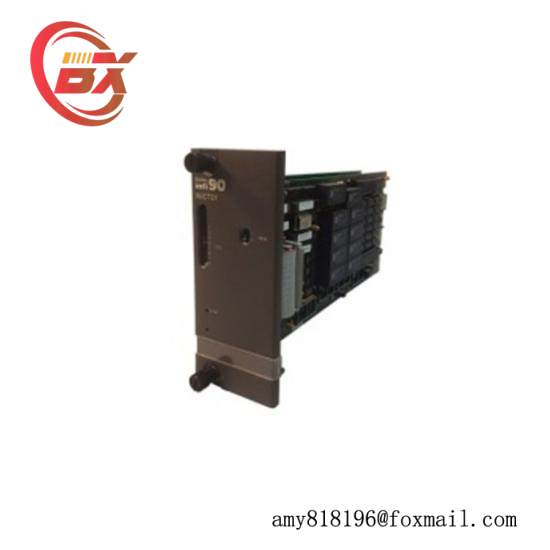

The Bailey INICT01 is an essential component for integrating INFI-Net systems with modern computing platforms. This module occupies two slots in a standard INFI 90 mounting unit, ensuring a secure and reliable installation. With two full-duplex serial EIA standard RS-232-C ports, it enables robust and efficient data transfer between the INFI-Net system and connected computers. The module features 256 kbytes of ROM, 512 kbytes of RAM, and 80 kbytes of NVRAM, providing ample memory resources for storing critical data and applications. Communication rates can range from 50 to 19,200 baud, making it suitable for a wide range of industrial control applications. The power requirements are carefully optimized to ensure stable operation, with +5 VDC at 4.2 A (21 W typical), +15 VDC at 40 mA (0.6 W typical), and -15 VDC at 20 mA (0.3 W typical). The Bailey INICT01 is designed for durability and reliability, making it an ideal choice for mission-critical industrial automation systems.
