Ladder-logic and Structured-Text Programming:Supports complex control logic with enhanced programming capabilities
Advanced Instruction Set:Incorporates comprehensive instructions for file handling, sequencers, diagnostics, shift registers, immediate I/O, and program control
Multiple Main Control Programs:Facilitates segregation of control tasks for optimized system performance
Processor Input Interrupts:Enhances responsiveness with interrupts for timely processing
Global Status Flags:Monitors and reports system state for proactive management
Programmable Fault Response:Ensures robust operation with predefined responses to faults
Timed Interrupt Routine:Periodically checks specific system conditions for timely adjustments
Protected Memory:Selective protection against data loss during processor changes
Amperage Rating:Backplane: 5 VDC, 500 MA; DeviceNet: 24 VDC, 90 MA
Mounting:Chassis mounting for secure installation
Communication Speed:125 KBPS
Dimensions:Length: 1-23/64 IN; Width: 5-1/8 IN; Height: 5-11/16 IN
Enclosure:Open type for efficient heat dissipation
RFI Suppression:Reduces interference across frequency bands
Temperature Rating:32 – 140 DEG F
Environmental Conditions:Relative humidity: 5 – 95%

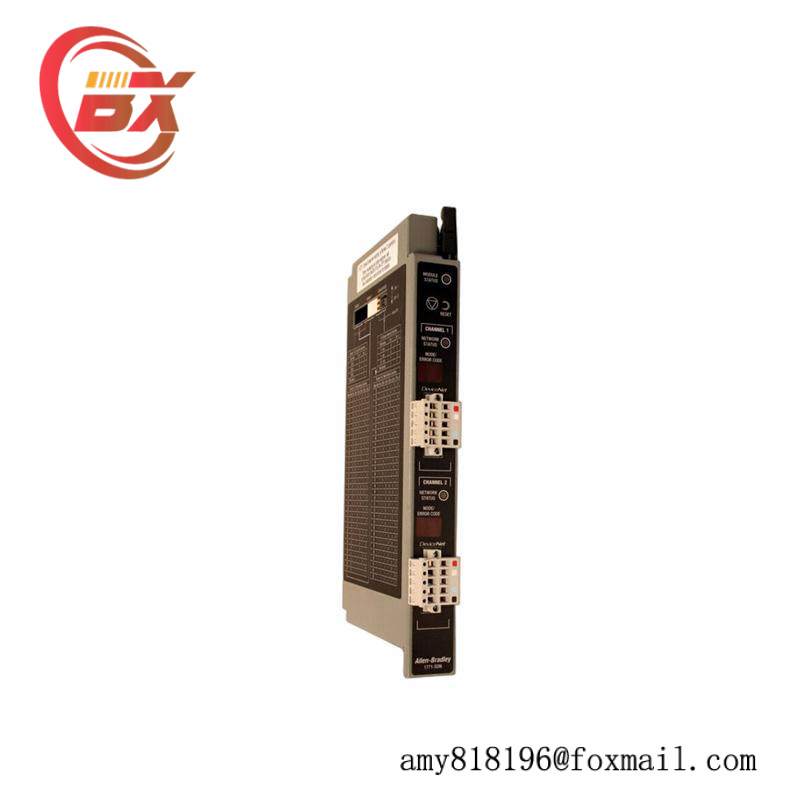

Engineered for industrial strength, the Allen-Bradley 1771-SDN Scanner Module is a cornerstone in automation technology. Its ladder-logic and structured-text programming capabilities ensure flexibility and efficiency in system integration.
With an advanced instruction set that includes file handling, sequencers, diagnostics, and shift registers, this module is designed to enhance operational precision and responsiveness in any industrial setting.
Featuring multiple main control programs, the module adeptly segregates control tasks, streamlining management and optimization processes. Its processor input interrupts and global status flags provide real-time feedback, ensuring proactive system management.
The programmable fault response mechanism ensures that critical issues are addressed swiftly, preventing system downtime. The timed interrupt routine allows for the examination of specific information at predetermined intervals, optimizing data collection and analysis.
Protected memory, selectable by word on selected processors, ensures data integrity even during power fluctuations. With a wide range of amperage ratings and robust environmental conditions, this scanner module is engineered to withstand harsh industrial environments, offering reliable performance across various settings.
