Series:CompactLogix
Model Type:Communication Modules
Module Type:Processor Module
Number of Communication Ports:1 RS232; 1 Ethernet
Programming Cable:1747-CP3 / 1756-CP3
Modules Supported:16 I/O Modules
Mounting Options:DIN Rail; Panel Mounting
Dimensions:Width: 4.65 inches, Height: 2.76 inches, Depth: 3.43 inches
Weight:1.39 pounds
Nominal Input Voltage:24VDC
Input Voltage Range:19.2-31.2VDC
Power Consumption:100 VA @ 24V DC
Fuse Type:Wickmann 19193-6.3A Littelfuse 021706.3MXP

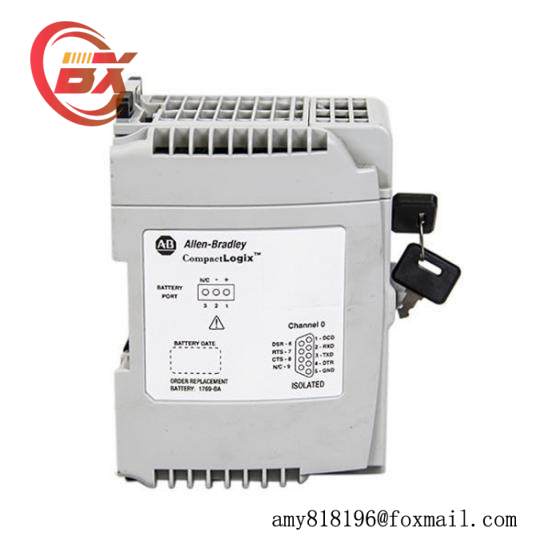

The Allen-Bradley 1769-L32E/A CompactLogix Communication Modules are engineered to enhance the efficiency and reliability of industrial automation systems. These modules are equipped with robust communication capabilities, ensuring smooth data exchange in complex industrial environments.
Designed with flexibility in mind, they offer multiple mounting options to cater to diverse installation requirements. The inclusion of both RS232 and Ethernet ports allows for versatile connectivity, accommodating various protocols and devices.
With support for up to 16 input/output modules, these modules can be seamlessly integrated into existing systems, enhancing their functionality without requiring significant hardware upgrades. They are compatible with Allen-Bradley’s RSLogix 5000 and Studio 5000 Logix Designer software for easy programming and configuration.
The Allen-Bradley 1769-L32E/A series is known for its high durability and reliability, backed by extensive testing and industry standards compliance. Its compact design ensures minimal space footprint, making it ideal for both panel and DIN rail installations.
Equipped with advanced safety features such as fuse protection, these modules provide peace of mind against potential electrical hazards. They are meticulously crafted from high-quality materials to withstand harsh industrial conditions, ensuring longevity and performance in challenging environments.
