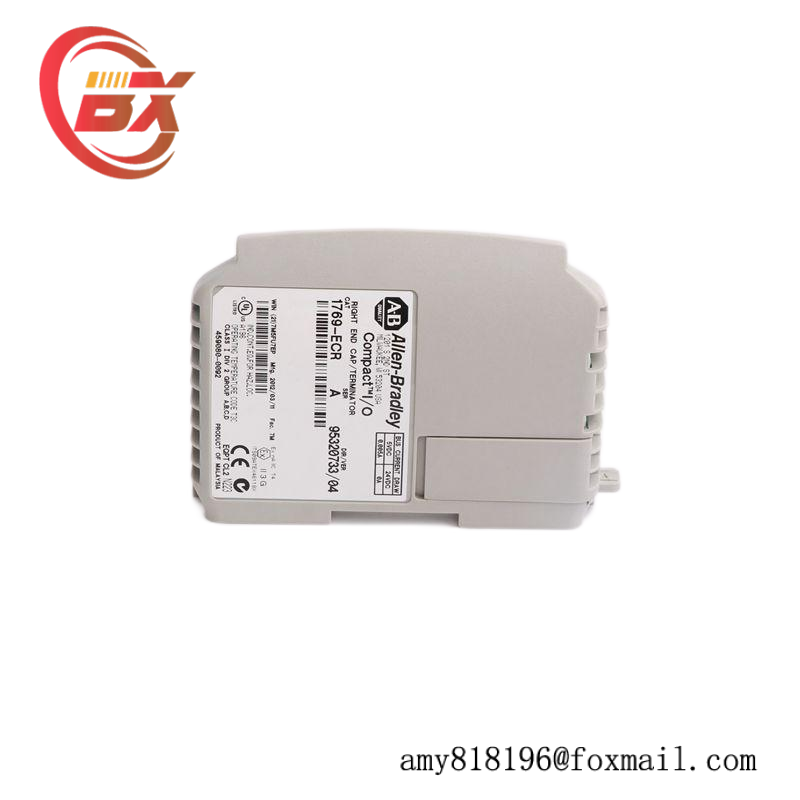

Allen-Bradley 1769-ECR CompactLogix Right End Cap

Module Type:Right End Cap

Operating Altitude:2000 m (6562 ft)

Maximum Bus Current Draw:5 mA at 5 volts DC

Backplane Current:1.4 Amps at 24 Volts

Power Consumption:33.6 Watts

Weight:130 g (0.286 lb)

    The Allen-Bradley 1769-ECR Right End Cap Module is specifically engineered to fit perfectly at the right end of any CompactLogix assembly, enhancing system modularity and flexibility.

    It boasts a compact design that minimizes the footprint on the system, making it an ideal choice for space-constrained environments.

    Equipped with a low current draw of 5 mA at 5.1 VDC, this module ensures minimal power consumption, contributing to energy-efficient operation.

    Weighing just 130 grams with an open-style enclosure, the 1769-ECR is lightweight and easy to integrate, facilitating smooth installation and maintenance processes.

    With its compatibility to the 1769 backplane, the module seamlessly connects to the processor, providing access to processor memory for enhanced data transfer efficiency.
