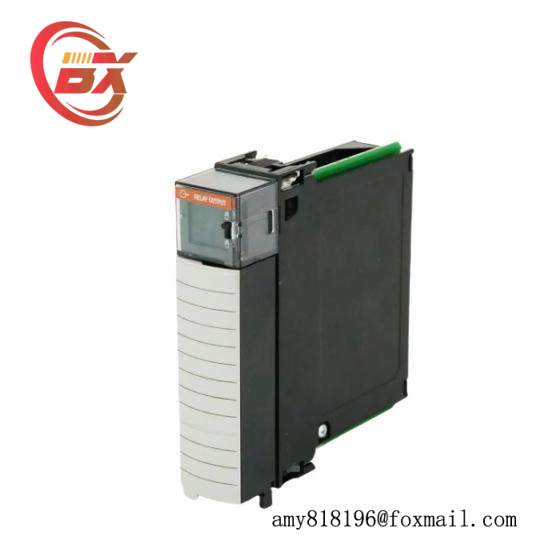

Allen Bradley 1756OX8I ControlLogix AC/DC Isolated Relay Output Module

Model:1756OX8I

Brand:Allen Bradley

Category:ControlLogix

Module Type:Relay Output

Supply Voltage:12 to 24 V DC

Output Configuration:8 Channels

Isolation:AC/DC

Operating Temperature:-40°C to +70°C

Communication Protocol:ControlNet, DeviceNet, EtherNet/IP

Dimensions:4.7 x 4.1 x 1.1 inches

Weight:0.5 lbs

    Engineered for industrial automation systems, the Allen Bradley 1756OX8I ControlLogix AC/DC Isolated Relay Output Module ensures robust performance in harsh environments. This module is equipped with eight SPST relays, each offering exceptional isolation to prevent cross-contamination between circuits.

    The module supports both AC and DC power inputs, providing flexibility in various industrial settings. Its compact design allows for easy integration into existing ControlLogix platforms, enhancing system efficiency without compromising on space.

    Featuring a wide operating temperature range from -40°C to +70°C, this module is ideal for use in extreme conditions encountered in manufacturing floors, process plants, and other demanding industrial applications. Its high isolation rating of 2000V protects against electrical surges and ensures safety in sensitive equipment.

    With a contact rating of 5A at 250VAC and 10A at 24VDC, the 1756OX8I can handle demanding loads without degradation of performance. The module’s SPST relays offer quick switching times, making it suitable for high-speed control tasks.

    Manufactured by Allen Bradley, a trusted name in industrial automation, this module comes with a comprehensive set of features including diagnostic LEDs, fault detection, and easy configuration options through the ControlLogix system software. It seamlessly integrates with other ControlLogix components and third-party devices, providing a cohesive solution for advanced automation needs.
