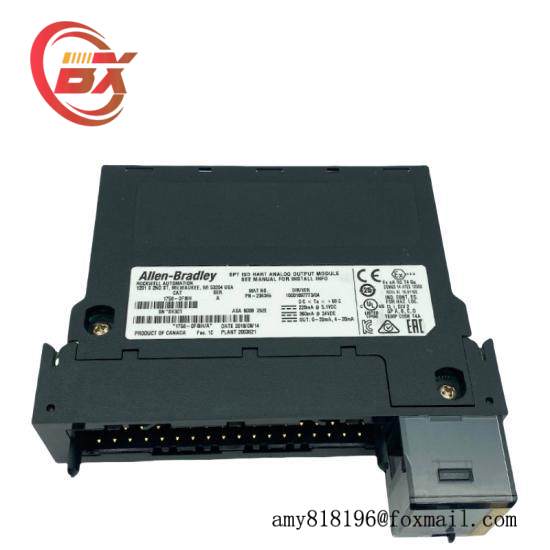

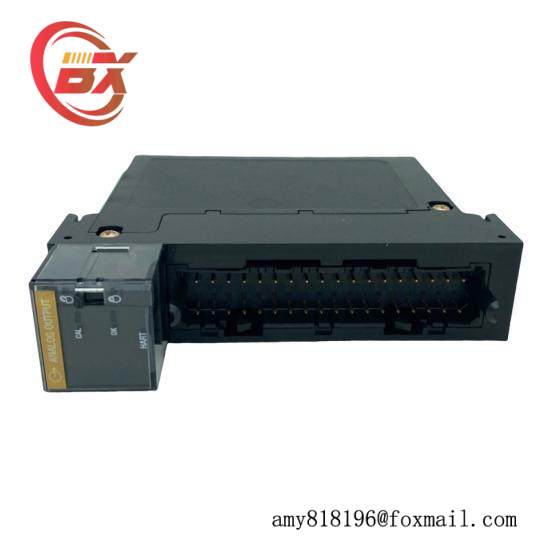

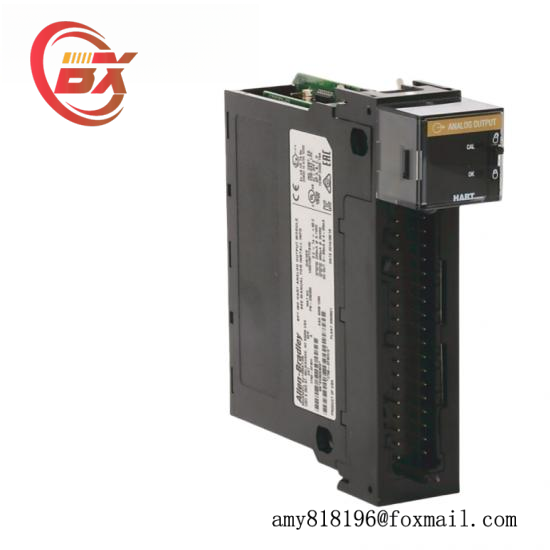

Allen-Bradley 1756-OF8IH ControlLogix Analog Output Module with HART Protocol

Model Type:ControlLogix

Model Number:1756-OF8IH

Manufacturer:Allen-Bradley

Number of Outputs:8

Output Type:Analog

Communication Protocol:HART

Isolation Voltage:30 VDC (continuous)

Current Rating:Drawn: 970 mA at 5.1 VDC, 1.7 mA at 24 VDC

Input Range:Multiple configurable current and voltage input ranges

Output Range:Variable, configurable based on application

Sampling Rate:Real-time

Alarms:Process alarms, rate alarm, wire-off detection

    This advanced ControlLogix Analog Output Module is engineered to provide seamless integration and control within complex industrial environments. The inclusion of HART protocol ensures compatibility with a wide array of devices, enhancing system efficiency and reliability.

    Each output channel is equipped with robust isolation technology, ensuring safety and preventing interference between different parts of the system. The module supports multiple configurable current and voltage input ranges, making it adaptable to various applications.

    Real-time sampling provides precise and responsive control, while under-range and over-range detection features prevent potential operational issues by alerting the system to potential faults in the input or output conditions.

    Wire-off detection ensures uninterrupted operation even if a cable is disconnected, minimizing downtime and improving system reliability. This feature is crucial for maintaining high levels of production and operational efficiency.

    With its compact design and compatibility with ControlLogix systems, the 1756-OF8IH is an ideal solution for industries requiring high-performance analog output control. Its compatibility with ControlNet and EtherNet/IP networks further enhances its flexibility and connectivity options.
