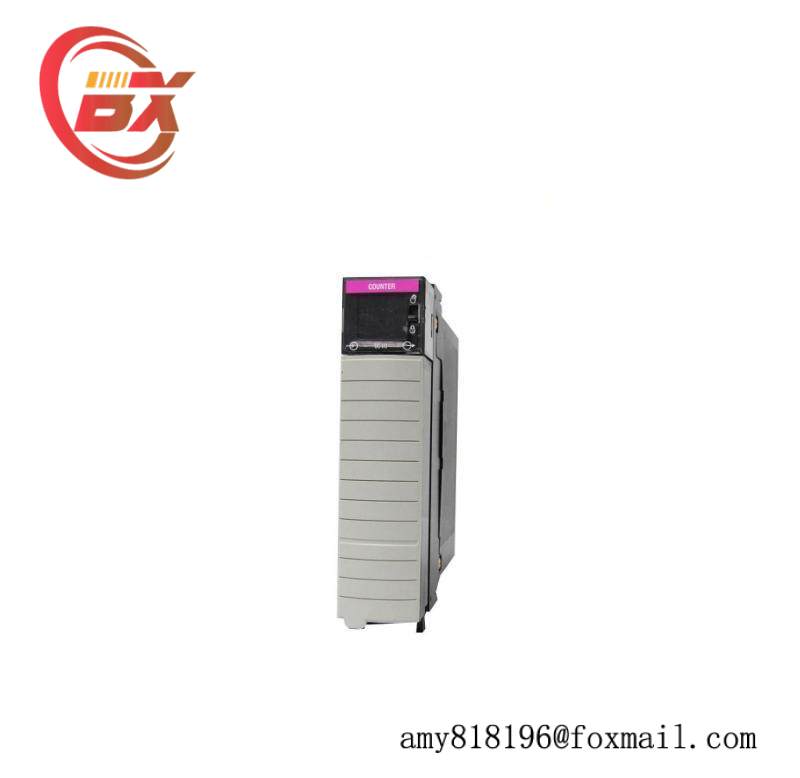

Allen Bradley 1756-HSC ControlLogix High-speed Counter Module

Module Type:High-speed Counter

Model Number:1756-HSC

Manufacturer:Allen Bradley

Series:ControlLogix

Speed Measurement Range:Up to 100 kHz

Counter Channels:4 independent counters

Counting Modes:Normal, up/down, interval, binary count

Input Signals:Supports 16-bit digital inputs

Operating Voltage:24 VDC ± 10%

Communication Interface:EtherNet/IP

Enclosure Type:IP20

Mounting Type:Panel

Power Consumption:Less than 5 watts

Temperature Range:-25°C to +70°C

Environmental Compliance:UL, CE, CSA certified

    The Allen Bradley 1756-HSC ControlLogix High-speed Counter Module is designed to deliver exceptional performance in high-speed counting tasks, ensuring that your automation processes are not only accurate but also efficient.

    With its robust design and versatile functionality, this module can handle a wide range of applications, from robotics and material handling systems to process control and machine tools, where precise speed measurements are critical.

    Equipped with four independent counters, the 1756-HSC module supports various counting modes, providing flexibility to adapt to different operational needs. Whether you require normal counting, up/down counting, interval counting, or binary counting, this module is capable of delivering the required precision.

    Featuring support for 16-bit digital inputs, the module ensures reliable signal processing and allows for seamless integration into existing control systems. Its compatibility with EtherNet/IP further enhances connectivity, enabling smooth data exchange with other devices on the network.

    Engineered to withstand challenging industrial environments, the Allen Bradley 1756-HSC module operates within a temperature range of -25°C to +70°C, ensuring reliability even under extreme conditions. Additionally, its UL, CE, and CSA certifications guarantee compliance with international safety standards, providing peace of mind for users worldwide.
