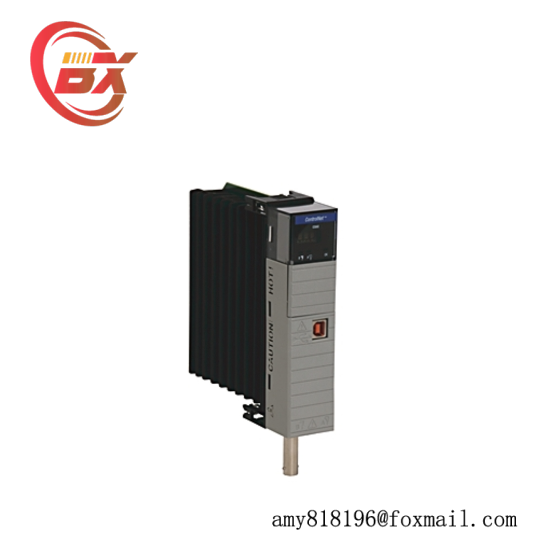

Allen-Bradley 1756-CN2R/C ControlLogix ControlNet Redundant Bridge Module

Model Type:Redundant Bridge Module

Model Number:1756-CN2R/C

Manufacturer:Allen-Bradley

Number Of Channels:2

Current Rating:Drawn: 970 MA At 5.1 VDC, 1.7 MA At 24 VDC

Isolation:30 V (Continuous), Basic Insulation Type

ControlNet Connectivity:A/B To Backplane, And ControlNet A To Controlnet B

Enclosure:Open Type

RFI Suppression:Radiated: 10 V/M With 1 KHZ Sine-Wave 80% AM From 80 – 2000 MHZ

Conducted:10 VRMS With 1 KHZ Sine-Wave 80% AM From 150 KHZ – 80 MHZ

Temperature Range:0 – 60 DEG C

Power Dissipation:5.1 W

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Communication Protocol:ControlNet

Connection Cables:Ethernet, USB Port

Mounting:Chassis

Power Supply:3 MA At 24 VDC

    Experience unparalleled system redundancy with the 1756-CN2R/C ControlLogix ControlNet Redundant Bridge Module, ensuring robust network connections in even the most demanding industrial environments.

    This high-performance module facilitates seamless data exchange between ControlNet networks, significantly reducing downtime and enhancing operational efficiency.

    Built with Allen-Bradley’s renowned reliability, this module boasts advanced isolation capabilities and efficient current handling, making it an ideal choice for critical applications.

    With its open-type enclosure and compatibility with shielded/unshielded twisted pairs, the 1756-CN2R/C effortlessly integrates into existing systems, offering flexibility and convenience.

    Optimize your automation strategy by incorporating the 1756-CN2R/C into your industrial control system. Trust Allen-Bradley for solutions that drive performance and reliability.
