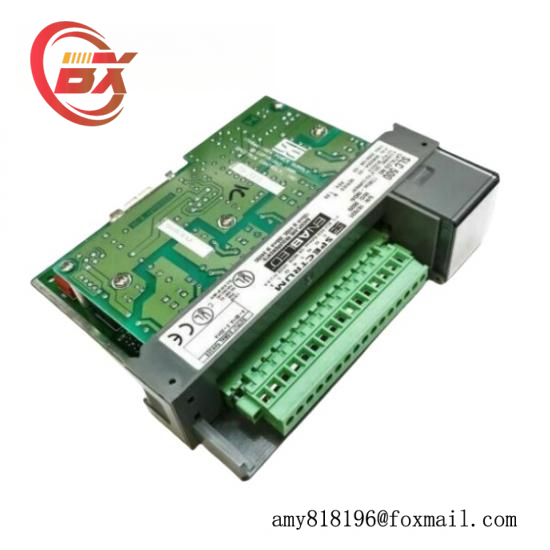

Allen Bradley 1746SC-INO4I Digital Input Module

In stock

The AB 1746SC-INO4I is an advanced industrial control module designed for seamless integration into various automation systems. It specializes in providing robust control solutions for manufacturing processes, enhancing efficiency and precision in production environments.

Model Type:Analog Input

Manufacturer:Allen Bradley

Model Number:1746SC-INO4I

SLC Series:SLC500

Number of Channels:4

Common Mode Voltage Range:-20 To 20 V

Absolute Input Voltage:Plus/Minus 7.5 VDC Or 7.5 VAC RMS (Maximum)

Input Range:-20 To 20 MA

Absolute Input Current:-30 To 30 MA (Maximum)

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Input Range (DC):-10 To 10 VDC – 1 LSB

Current Rating:Backplane Current Draw: 35 MA At 5 V, 85 MA At 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

The Allen Bradley 1746SC-INO4I is engineered for unparalleled precision and reliability in industrial automation environments. This high-resolution analog input module is part of the renowned SLC series, ensuring compatibility and seamless integration with existing Allen Bradley control systems.

Featuring four independent channels, this module allows for direct connection to sensors and transducers, enabling real-time data acquisition and processing essential for complex control applications. Its wide common mode voltage range ensures robust performance under varying environmental conditions.

With a maximum absolute input voltage of 7.5 VDC or 7.5 VAC RMS, and an input range of -20 to 20 mA, the 1746SC-INO4I provides exceptional sensitivity and accuracy, crucial for measuring subtle changes in industrial processes.

Equipped with state-of-the-art overvoltage protection, this module safeguards against electrical surges, ensuring uninterrupted operation and minimizing downtime. The backplane isolation of 500 VDC and open-type enclosure design further enhance its durability and reliability in harsh industrial settings.

Designed for easy installation and maintenance, the Allen Bradley 1746SC-INO4I is compatible with various communication protocols including EtherNet/IP, DH+, DH-485, and RS-232, facilitating integration with diverse network infrastructures. It supports remote monitoring and control through ControlNet, DeviceNet, and Universal Remote I/O links, offering flexible solutions for distributed control systems.
