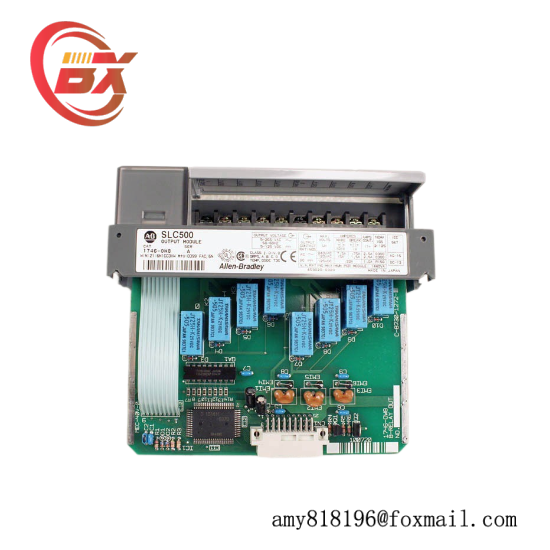

Allen Bradley 1746-OW8 Output Module for SLC 500 PLCs

Product Type:PLC

Model ID:1746-OW8

Type Designation:Allen Bradley

Module Type:Digital Contact Output Module

Outputs:8

Operating Voltage:5-265V AC or 5-125V DC

Output Types:N.O. Relay Contact

Backplane Current:0.85-0.9A

Voltage Rating:Overvoltage Protection: 7.5V AC RMS

Input Range:-10 to 10V DC

Current Rating:Backplane: 35mA at 5V, 85mA at 24V

Isolation:Backplane: 500VDC, Enclosure: Open Type

Temperature Rating:0 – 60°C

Environmental Conditions:5 – 95%

    The Allen Bradley 1746-OW8 Output Module is engineered for seamless integration with the Allen-Bradley SLC 500 PLC series, offering precise control over industrial systems. This module is equipped with eight high-speed digital contact outputs, capable of handling diverse industrial loads with precision.

    With an operating voltage range from 5-265 Volt AC or 5-125 Volts DC, the module ensures compatibility with various power sources commonly found in industrial environments. The N.O. Relay Contact output types provide a reliable and robust switching mechanism for your control applications.

    The backplane current consumption of this module varies between 0.85-0.9 A, ensuring efficient power management without compromising performance. The open-type enclosure design facilitates easy installation and maintenance, making it a preferred choice for industrial automation projects.

    The isolation rating of the 1746-OW8 Output Module stands at 1500 VAC for communication circuits and 500 VDC for backplane connections, guaranteeing high levels of electrical isolation. This feature enhances safety and reliability in harsh industrial environments, reducing the risk of short circuits and ensuring stable operation.

    This Allen Bradley output module is designed to deliver consistent performance under a wide temperature range of 0-60°C, ensuring its durability and reliability in various industrial settings. Whether you’re managing complex machinery or integrating control systems, the Allen Bradley 1746-OW8 Output Module offers a reliable solution tailored for your industrial needs.
