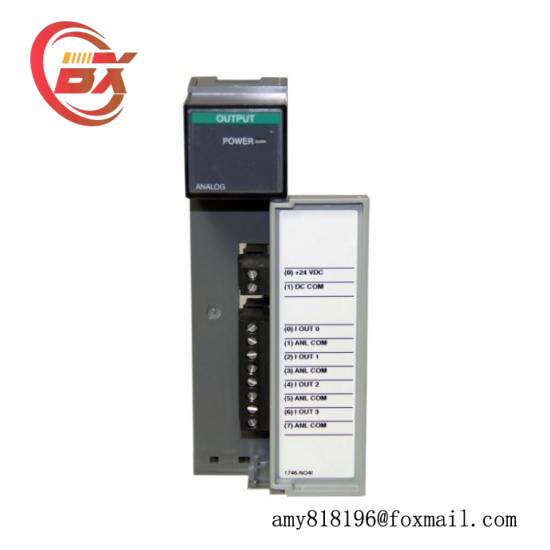

Allen-Bradley 1746-NOI4I - 4-Channel Analogue Output Module

Allen-Bradley 1746-NOI4I – 4-Channel Analogue Output Module

In stock

The AB 1746-NOI4I is a versatile 4-channel analogue output module designed for precision control applications in industrial automation systems. It facilitates the conversion of digital signals from Programmable Logic Controllers (PLCs) into precise analogue outputs, ideal for controlling actuators, valves, and other devices requiring smooth, continuous adjustments.

Number of Channels:4

Output Range:0-20 mA

Operating Voltage:24 VDC ±10%

Minimum Output Current:300 mA

Current Output Ranges:4-20 mA, 0-20 mA, 0-21 mA, 0-21.5 mA

Current Rating:Backplane: 120 mA at 5 VDC, 250 mA at 24 VDC (with J4 jumper set to rack), 0 mA at 24 VDC (with J4 jumper set to EXT)

Isolation:Backplane: 500 VDC, Enclosure: Open Type

Display:Status LED

Connection Cables:24-14 AWG

Mounting:Chassis

Environmental Compatibility:IP20 rated, suitable for general industrial environments

Precision Control: The Allen-Bradley 1746-NOI4I offers accurate current output for a variety of industrial applications, ensuring reliable performance in complex systems.

Versatile Compatibility: Designed for seamless integration into Allen-Bradley’s SLC500 series, this module supports a wide range of control protocols, enhancing system flexibility.

Robust Construction: With its open-type enclosure and 500VDC isolation, the 1746-NOI4I ensures durability and safety in harsh industrial environments.

Easy Configuration: The module’s intuitive design allows for quick setup and adjustment, reducing downtime and simplifying maintenance procedures.

Comprehensive Monitoring: Through integrated status LEDs, users can easily monitor the health and status of each channel, promoting proactive maintenance strategies.

1746-NOI4I 4 Channel Analogue Output Module
