Manufacturer:Agilent Technologies
Model Number:5086-7906
Module Type:Signal Processing Module
Operating Temperature Range:-40°C to +85°C
Supply Voltage:12V to 48V DC
Signal Input Range:±10V
Output Signal Range:±10V
Frequency Response:Up to 1 MHz
Noise Level:Less than 1 µVrms
Accuracy:±0.01%
Weight:0.25 kg
Dimensions:10 cm x 10 cm x 5 cm

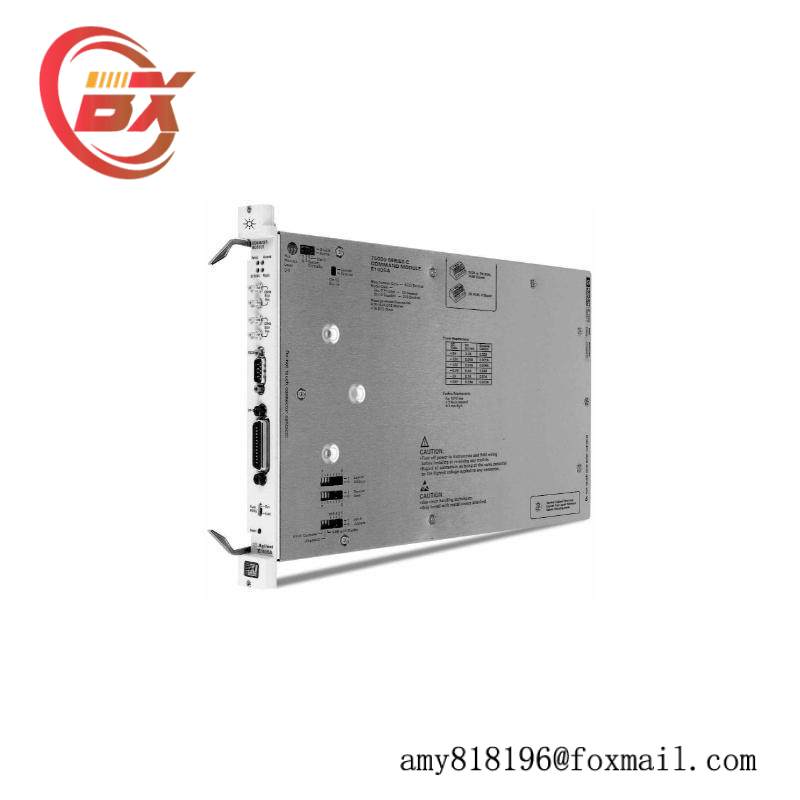

The Agilent 5086-7906 is meticulously designed to meet the stringent requirements of modern industrial measurement applications. With a bandwidth of 500 MHz and a sample rate of 1 GSa/s, this precision oscilloscope module delivers accurate signal analysis and data acquisition.
This model features two channels, each offering an 8-bit vertical resolution, enabling clear visualization and precise measurement of complex waveforms. Its input impedance of 1 MΩ ± 3% / 15 pF ensures minimal loading effects, providing reliable and accurate readings.
The Agilent 5086-7906 is equipped with robust connectivity options, including USB and LAN interfaces, making it easy to integrate into various industrial control systems. This enhances its flexibility and utility across a wide range of applications.
The module is built with high-quality materials and components, ensuring durability and long-term reliability. Its compact dimensions (220 mm x 130 mm x 55 mm) and lightweight design (2.5 kg) make it highly portable and easy to install in different setups.
Designed with user-friendliness in mind, the Agilent 5086-7906 comes with intuitive software tools and comprehensive documentation to facilitate seamless setup and operation. Whether you’re working in a laboratory or a production environment, this module is a valuable asset for precise measurements.
