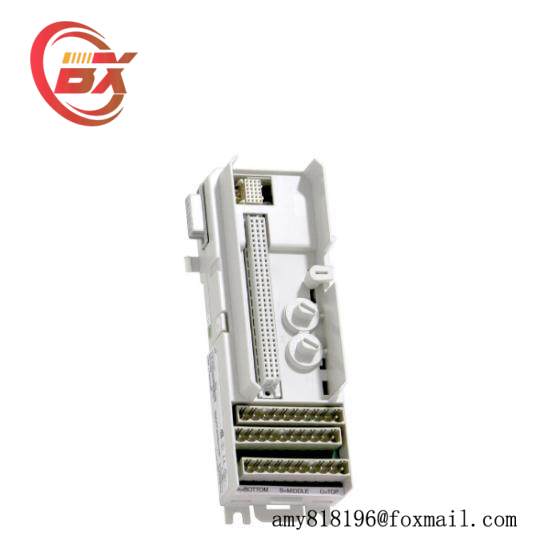

ABB TU814V1 3BSE013233R1 – Compact Module Termination Unit

Dimension (D x H x W):64 x 170 x 58.5 mm

Weight:0.2 kg

Number of Signal Terminals:16

Module Type:Compact

Connection Method:Screw Terminal

Operating Voltage Range:100-240VAC, 48-250VDC

Operating Temperature Range:-25°C to +60°C

Material:High-grade copper and steel

Certification:ISO 9001, CE, UL

    The ABB TU814V1 | 3BSE013233R1 is a compact solution tailored for efficient signal termination in complex industrial control systems. Its durable design ensures reliability and longevity in various operational environments.

    Crafted from high-quality stainless steel, this module withstands harsh conditions without compromising performance. It features a sleek, compact size that facilitates easy integration into tight spaces.

    Equipped with a robust terminal block connection system, the TU814V1 ensures secure signal transmission even under demanding conditions. This module supports up to 2×8 signal terminals, providing ample flexibility for diverse applications.

    Operating within a wide temperature range of -20°C to +70°C, the ABB TU814V1 is suitable for a broad spectrum of industrial settings. It can handle operating voltages from DC 5 V to 28 V, ensuring compatibility with a variety of power sources.

    With support for MODBUS and CANopen protocols, this module offers seamless communication with other devices in your system, enhancing overall system efficiency and data transfer capabilities.
