Type:Measuring Board
Model Number:DSQC402
Series:SMB
Part Number:3HAC045759-001
Dimensions (WxHxD):120mm x 100mm x 30mm
Operating Temperature Range:-20°C to +55°C
Supply Voltage:12V DC ±10%
Communication Interface:RS-485
Analog Inputs:2
Digital Inputs:8
Analog Outputs:2
Digital Outputs:16
Accuracy:+/-0.1% FS
Load Resistance:1kΩ max.
Operating Current:Max. 25mA per channel
Data Transfer Rate:9.6kbps to 1Mbps
Relay Contact Rating:24VDC/10mA @ 100V
Enclosure Type:IP20
Mounting:Panel

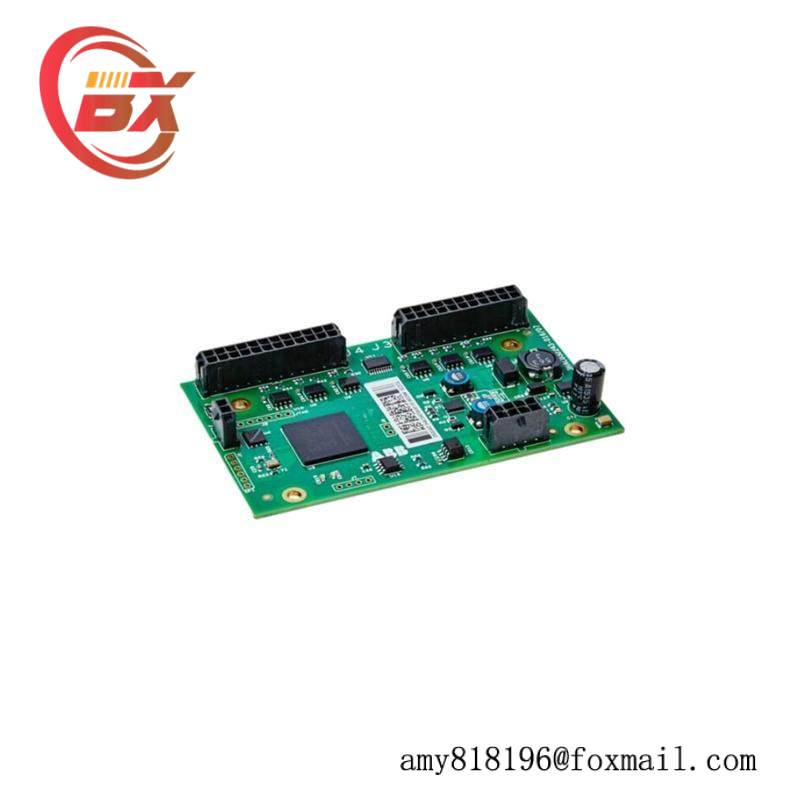

Precision-engineered for seamless integration into ABB‘s advanced industrial automation platforms, the ABB SMB DSQC402 3HAC045759-001 Measuring Board is a cornerstone of high-performance control systems.
Featuring an impressive array of analog and digital input/output channels, this board ensures efficient data processing and control functionality, making it ideal for a wide range of applications including process control, machine diagnostics, and quality assurance.
With support for EtherCAT communication protocol, the board enables fast and reliable data exchange between the system and other devices, ensuring smooth operation and enhanced system performance.
Built to withstand harsh industrial environments, the ABB SMB DSQC402 is designed to operate within extreme temperature and humidity conditions without compromising its performance, ensuring continuous operation even in the most demanding settings.
Crafted from robust materials for durability and longevity, this measuring board comes equipped with advanced circuitry that minimizes signal interference, providing accurate measurements under various operational scenarios.
