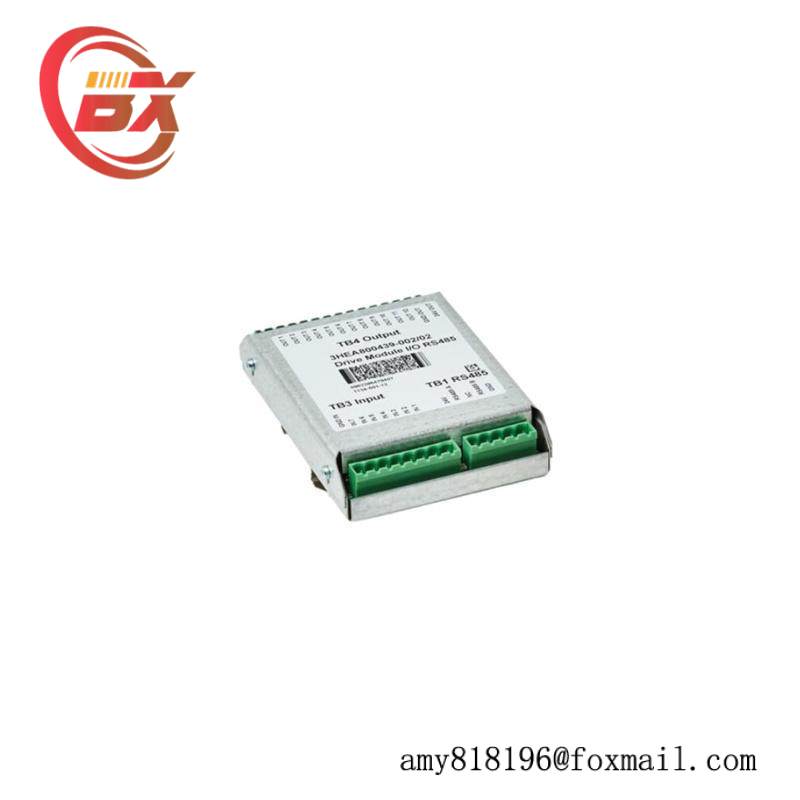

ABB Industrial Control System – 3HEA800439-002 | 3HAC026225-002 | 3HAC036567-001 | 3HAC021914-001, Drive Module I/O RS485

Type:Drive Module

Module Class:I/O RS485

Model:3HEA800439-002, 3HAC026225-002, 3HAC036567-001, 3HAC021914-001

Communication Protocol:RS485

Operating Temperature:-25°C to +60°C

Voltage Range:12VDC to 24VDC

Data Transfer Rate:19.2 kbps to 115.2 kbps

Power Consumption:Less than 1W

Dimensions (WxHxD):100mm x 80mm x 20mm

Weight:0.15kg

    This series of drive modules from ABB is engineered for high reliability and efficiency, ensuring seamless integration with various industrial automation systems. The RS485 interface supports bidirectional data exchange, enhancing operational flexibility and responsiveness.

    Featuring four analog inputs and four digital outputs, these modules provide versatile connectivity options, facilitating real-time monitoring and control of industrial processes. The compact design, coupled with a low power consumption, makes them suitable for space-constrained environments.

    Designed to withstand harsh industrial conditions, the modules meet IP20 environmental ratings, protecting against dust ingress. This ensures durability and longevity in demanding applications.

    For ease of installation and configuration, ABB provides comprehensive documentation and support, including detailed manuals and online resources. Users can quickly set up and optimize the modules to meet specific application requirements.

    Incorporating advanced error detection and recovery mechanisms, these drive modules ensure minimal downtime and efficient operation. They are compliant with industry standards, including CE, IEC 60721-3-3, and ISO 9001, ensuring compatibility and safety across global markets.
