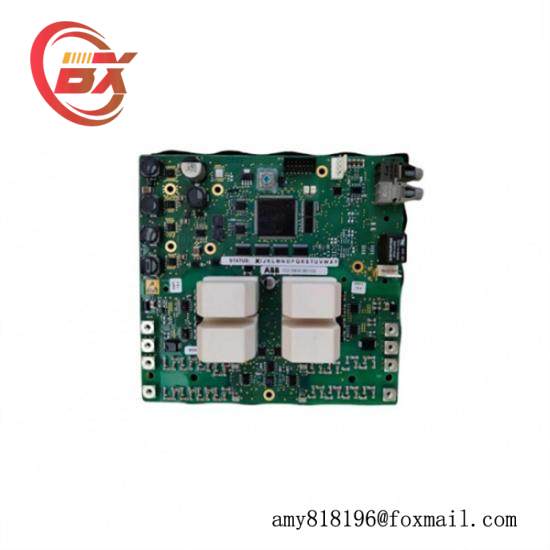

ABB GD D830 B105 Gate Drive, Advanced Industrial Control Solutions

Product Type:Gate Drive Module

Brand:ABB

Model:GD D830 B105

Order Number:3BHE022678R0105

Certified Product:Yes

Series:GD D830 B105

Material Coding:3BHE022678R0105

Power Rating:24VDC

Current Rating:30A

Frequency:50/60Hz

Cooling Method:Air Cooling

Operating Temperature Range:-20°C to +55°C

Storage Temperature Range:-40°C to +70°C

Dimensions (HxWxD):120mm x 110mm x 40mm

Weight:0.5kg

Interface Type:Digital Input/Output

Communication Protocol:RS485 Modbus

Protection Class:IP20

Safety Certification:IEC 61800-5-1, EN 61800-5-2

    The ABB GD D830 B105 GATE DRIVE – 3BHE022678R0105 boasts a robust design for enhanced reliability and efficiency in high-speed switching applications. Its high switching frequency ensures minimal electromagnetic interference, making it suitable for sensitive systems.

    Featuring a modular construction, this gate drive module allows for easy integration into existing control systems. It supports both PWM and analog input signals, providing flexibility in signal handling and processing.

    With its F-class insulation, the ABB GD D830 B105 is capable of operating in challenging industrial conditions without overheating. The IP20 protection class ensures basic splash resistance, enhancing its durability in factory environments.

    For seamless communication and control, this module is compatible with MODBUS RTU protocol, allowing for simple setup and integration with various automation software. The current feedback output enables precise monitoring of the load’s electrical parameters.

    In summary, the ABB GD D830 B105 GATE DRIVE – 3BHE022678R0105 offers a combination of high-performance capabilities, ease of integration, and robust design, making it an ideal choice for advanced control systems requiring precise and reliable gate drive solutions.
