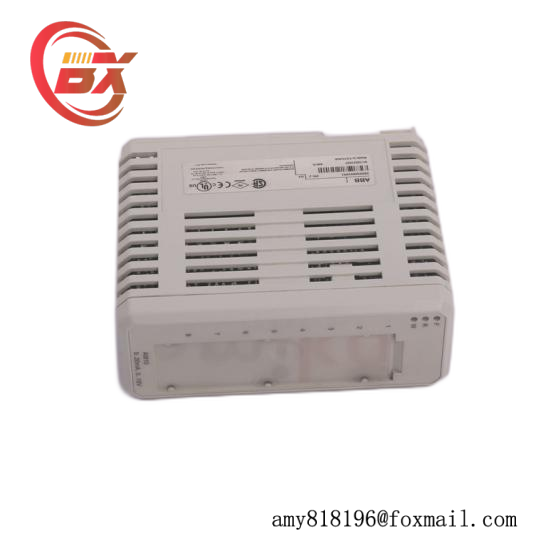

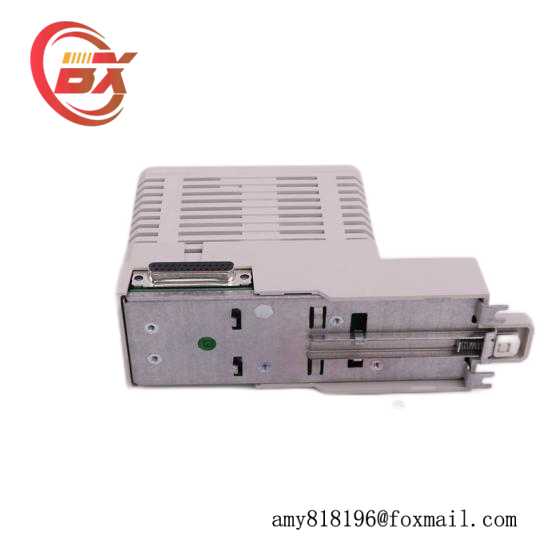

ABB DSQC509 3HAC5687-1/07 Connection Unit

Operating Voltage:24 VDC

Output Frequency:5 kHz

Input Channels:8 digital input channels

Output Channels:4 discrete output channels

Communication Interface:RS-485

Power Consumption:Max. 1.2 W

Relay Contact Rating:10 A @ 24 VDC

    Integrating advanced technology and proven reliability, the ABB DSQC509 3HAC5687-1/07 Connection Unit offers unparalleled performance in industrial automation settings. Designed for versatile applications, it ensures efficient data transmission and control in complex machinery setups.

    Featuring a compact yet durable design, this connection unit is engineered to withstand harsh industrial environments. Its rugged construction guarantees long-term reliability, even in demanding conditions, thus reducing downtime and maintenance costs.

    With support for multiple communication protocols, the DSQC509 facilitates seamless integration with a wide range of automation systems. This compatibility ensures flexibility in system design and simplifies the setup process for diverse industrial applications.

    Each channel supports a maximum input current of 200 mA and output current of 500 mA, providing ample capacity for various types of sensors and actuators. This ensures precise control and responsiveness in critical operations, enhancing overall system performance.

    The DSQC509 operates within an extensive temperature range (-20°C to +60°C) and maintains its functionality in humid environments (up to 95% non-condensing). This broad operational envelope makes it suitable for a wide variety of industrial locations, from cold storage facilities to hot production lines.
