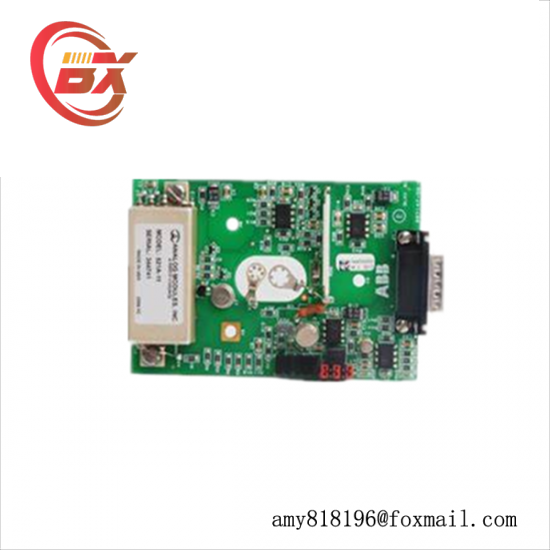

ABB DSQC373, 3HAC3180-1, Robot Computer Board

Manufacturer:ABB

Model Number:3HAC3180-1

Series:DSQC373

Processor Type:Advanced Microcontroller

Memory Capacity:512 KB

Operating Voltage Range:24 V DC

Communication Interfaces:RS-232, Ethernet

Input/Output Channels:16 Digital Inputs, 8 Digital Outputs

Expansion Capacity:Supports up to 2 additional I/O modules

Dimensions (WxHxD):100 mm x 90 mm x 30 mm

Weight:0.15 kg

Certifications:ISO 9001, CE

    This ABB DSQC373 board is specifically engineered for robotic applications, providing a robust platform for real-time control and data processing. Its compact design ensures minimal space consumption on the robotic arm, making it ideal for both industrial and collaborative robot systems.

    Equipped with an advanced microcontroller, the DSQC373 offers unparalleled performance, enabling faster processing speeds and enhanced precision in robotic operations. This board is compatible with the EtherCAT network protocol, facilitating high-speed communication and synchronization between the robot and other system components.

    With its wide operating temperature range from -25°C to +60°C, this board is designed to withstand harsh industrial environments, ensuring reliable operation in diverse settings. It supports a memory capacity of 64KB, providing ample storage for program data and user-defined variables.

    Weighing just 55g, the DSQC373 board is lightweight yet durable, making it easy to integrate into robotic systems without compromising on functionality. The board’s dimensions of 55mm x 43mm allow for efficient layout planning on the robotic frame.

    Designed with ease of use in mind, the ABB DSQC373 3HAC3180-1 Robot Computer Board comes with comprehensive documentation and support resources, enabling quick setup and integration into existing automation systems. It is an essential component for developers looking to enhance the capabilities of their robotic systems.
