Operating Voltage:24 V DC
Output Power:Up to 500 W
Control Interface:RS-232 / RS-485
Communication Protocol:EtherCAT, DeviceNet
Input Signals:10 digital inputs, 2 analog inputs
Output Signals:10 digital outputs, 1 analog output
Protection Class:IP20
Dimensions (WxDxH):144 mm x 144 mm x 71.5 mm
Weight:0.7 kg

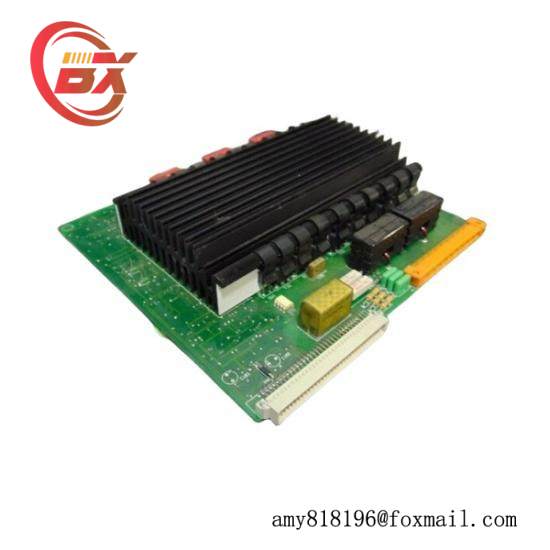

The ABB DSQC236U 3HAA3563ANA Servo Drive Unit is a prime example of precision engineering tailored for demanding industrial environments. Its robust design ensures reliability and longevity in continuous operation. Equipped with advanced control algorithms, this unit delivers unparalleled performance, making it an ideal choice for applications requiring high accuracy and dynamic response.
Featuring a compact size and modular architecture, the DSQC236U seamlessly integrates into existing automation systems, enhancing efficiency without compromising on space. The EtherCAT protocol enables seamless communication, ensuring quick data transfer and precise control over multiple drives simultaneously.
With support for single-phase motors up to 3 HP, this drive unit caters to a wide range of industrial machinery, from conveyors and robotics to precision cutting equipment. Its compatibility with various motor types and sizes allows for flexible customization according to specific application requirements.
The DSQC236U operates within a temperature range of -20°C to +60°C, ensuring stable performance even under challenging environmental conditions. This wide operating temperature range makes it suitable for applications in diverse geographical locations, including harsh industrial settings.
Designed with user convenience in mind, the DSQC236U offers easy setup and maintenance through intuitive diagnostics and self-diagnostics features. It also supports remote access via standard communication interfaces, allowing for efficient monitoring and troubleshooting from anywhere in the network.
