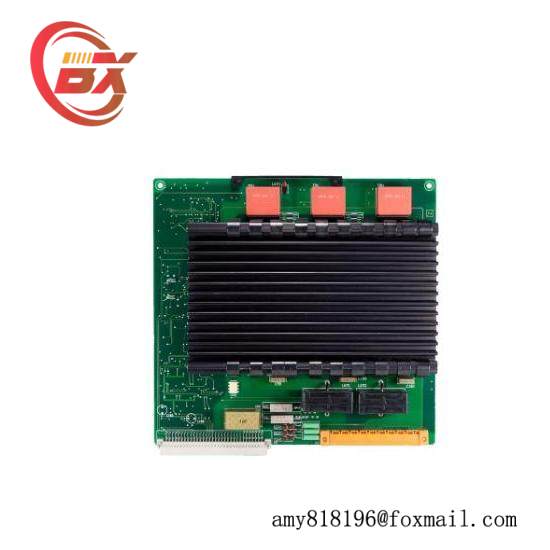

ABB DSQC236G YB560103-CD/22 – High-Precision Robot Axis Drive Board

Place of Origin:Sweden

Order Number:DSQC 236G YB560103-CD/22

Custom Processing:Yes

Item No.:DSQC 236G YB560103-CD/22

Brand:ABB

Model:DSQC 236G YB560103-CD/22

Operating Voltage:24V DC

Output Frequency:Up to 20 kHz

Certified Product:Yes

Series:DSQC 236G YB560103-CD/22

    The ABB DSQC236G YB560103-CD/22 Robot Axis Drive Board boasts an ultra-compact design that facilitates efficient integration into robotic systems without compromising functionality. Its robust construction ensures durability and reliability in harsh industrial environments.

    This drive board supports DeviceNet communication, enabling seamless data exchange with other components in the robotic system, thus optimizing overall system performance. The dual-axis capability allows for precise control over two robotic axes simultaneously, enhancing operational flexibility and efficiency.

    With its high resolution and speed range, the DSQC236G board ensures accurate positioning and smooth motion, making it ideal for applications requiring high precision and repeatability. The board is capable of handling heavy loads while maintaining exceptional control accuracy.

    Designed for operation within a wide temperature range (-20°C to +50°C), this drive board ensures consistent performance regardless of environmental conditions, making it suitable for a variety of industrial settings.

    For installation, the DSQC236G YB560103-CD/22 requires an external 24 VDC power supply, which can be easily connected to existing infrastructure. Comprehensive documentation and support are provided to ensure a smooth setup process.
