Brand:ABB
Model:DSQC104
Type:Resolver Interface Module
Series:Advanced Automation Components
Application Voltage:DC 10V to 24V
Current Consumption:≤ 15mA
Accuracy:+/- 0.5° or better
Operating Temperature Range:-25°C to +70°C
Storage Temperature Range:-40°C to +85°C

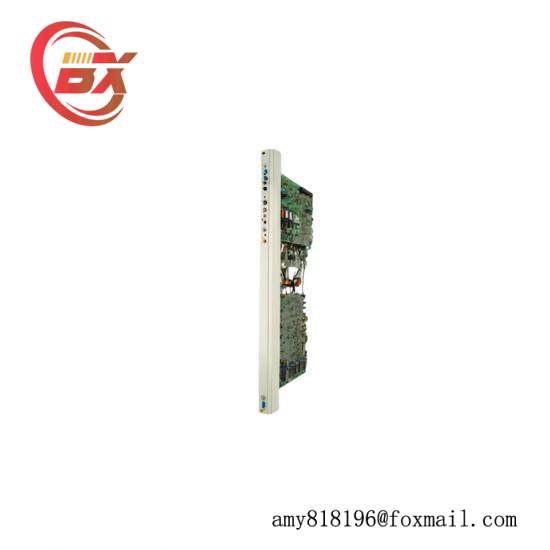

Experience unparalleled precision in angle and position measurement with our ABB DSQC 104 Resolver Board, specifically engineered for demanding industrial environments. This robust and reliable board is an indispensable part of any advanced automation system, ensuring accuracy and efficiency in your operations.
Equipped with state-of-the-art EtherCAT technology, this resolver board seamlessly integrates with your existing network infrastructure, providing a seamless communication link for precise data transmission. It’s compatible with a wide range of industrial protocols, making it a versatile solution for various applications.
Crafted with durability in mind, the DSQC 104 Resolver Board withstands extreme temperature fluctuations, ranging from -20°C to +70°C, ensuring uninterrupted performance in even the harshest conditions. Its high-resolution capabilities deliver measurements accurate to within ±0.5°, offering unmatched precision for critical applications.
With its dual-channel design and load capacity of 1 A per channel, the DSQC 104 Resolver Board is capable of handling a variety of loads without compromising on performance. Each channel is equipped with a 20-pin connector, facilitating easy integration into your current setup.
In addition to its technical prowess, the ABB DSQC 104 Resolver Board is designed with user-friendliness in mind. It offers a straightforward setup process and is supported by comprehensive documentation, ensuring a smooth integration experience. This makes it an ideal choice for both new and experienced users in the field of industrial automation.
