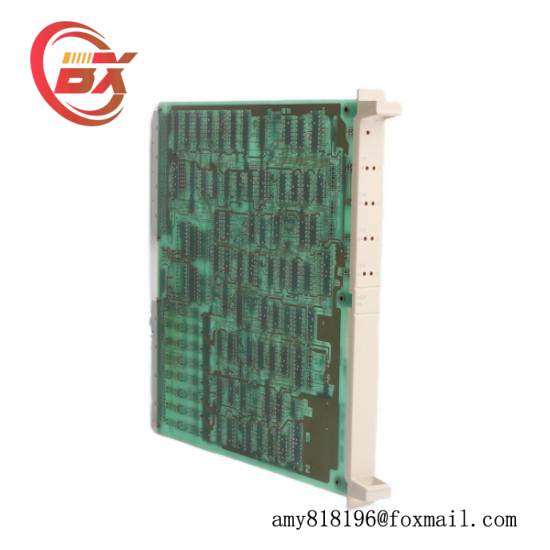

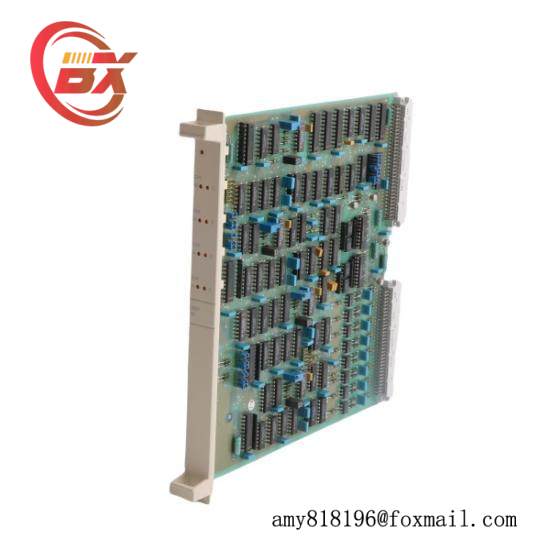

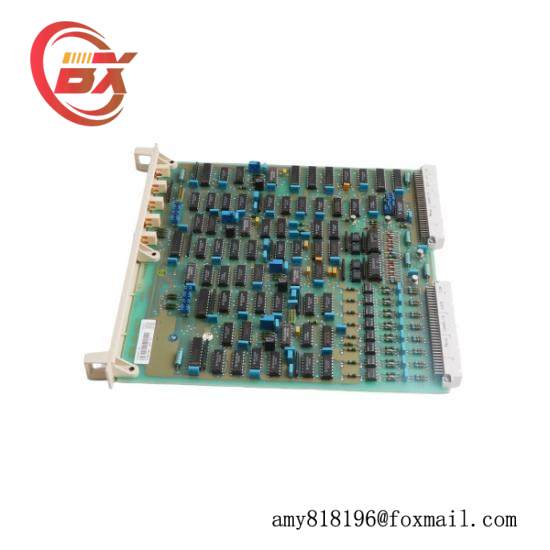

ABB DSDP160 57160001-KG Pulse Counter Board

Model:DSDP160

Part Number:57160001-KG

Operating Temperature Range:-20°C to +70°C

Input Voltage Range:DC 10V to 30V

Output Signals:12-bit resolution counter output

Max Count Capacity:2^31 – 1 pulses

Communication Protocol:Modbus RTU

Dimensions (WxHxD):115mm x 85mm x 45mm

Weight:0.3kg

Power Consumption:1.5W max

    The ABB DSDP160 57160001-KG Pulse Counter Board is designed for seamless integration into complex industrial control systems, ensuring accurate and reliable pulse counting across various applications.

    Featuring an advanced microcontroller architecture, this board delivers exceptional performance under challenging environmental conditions, maintaining stability in harsh industrial settings.

    With its compact DIN rail mountable design, the ABB DSDP160 simplifies installation and space optimization in modern automation setups, making it a preferred choice for engineers seeking efficient and scalable solutions.

    Equipped with Modbus TCP/IP communication protocol, the board supports easy data exchange with other networked devices, enhancing system interoperability and reducing integration time.

    The robust input voltage range ensures compatibility with diverse power supplies, while the high-speed counting rate supports real-time monitoring and control of high-frequency processes, contributing to enhanced operational efficiency.
