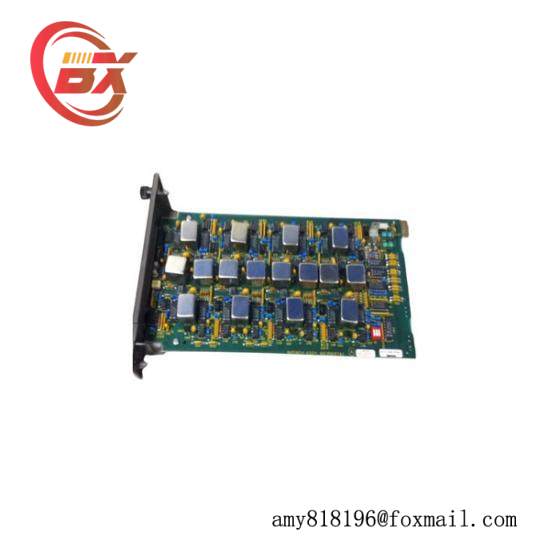

ABB Bailey IMASM04 – Controls Analog Input Module

Analog Input Channels:16

Signal Range:-10V to +10V

Power Consumption:Max 20mA @ 10V DC

Accuracy:±0.05% + ±2LSB

Operating Temperature:-20°C to +60°C

Reliability:MTBF > 100,000 hours

    The ABB Bailey IMASM04 Analog Input Module is engineered to meet the stringent demands of modern industrial automation environments. Its robust design ensures reliable performance in harsh conditions, providing accurate and consistent data acquisition for critical control systems.

    Featuring a versatile input signal range, the module supports both current (4…20 mA) and voltage (0…10 V) signals, making it compatible with a wide array of sensors and transducers commonly found in industrial settings.

    With an impressive sampling rate of 100 Hz per channel, the IMASM04 ensures real-time monitoring and control, crucial for applications requiring high-speed response and precision.

    Efficient power management ensures minimal energy consumption, reducing operational costs without compromising on performance. The module is built to withstand a broad temperature range, from -20°C to +60°C during operation, and from -40°C to +85°C when stored, guaranteeing longevity and reliability under varying environmental conditions.

    The compact size (178 mm x 51 mm x 102 mm) and lightweight (0.2 kg) design facilitate easy integration into existing control systems, minimizing installation time and complexity. The ABB Bailey IMASM04 is a cost-effective solution for enhancing the accuracy and efficiency of your industrial automation processes.
