Brand:ABB
Model:AI86-16
Sub-model:Analog Input Board
Series:57087196
Place of Origin:Switzerland
Operating Voltage:24 V DC
Channels:16
Type of Input:Analog
Accuracy:+/- 1% of reading
Response Time:Less than 2 ms
Operating Temperature:-20°C to +70°C
Storage Temperature:-40°C to +85°C
Certification:IEC 61131-2
Dimensions:120 mm x 100 mm
Material:Aluminum
Connectors:2 x M12 connector

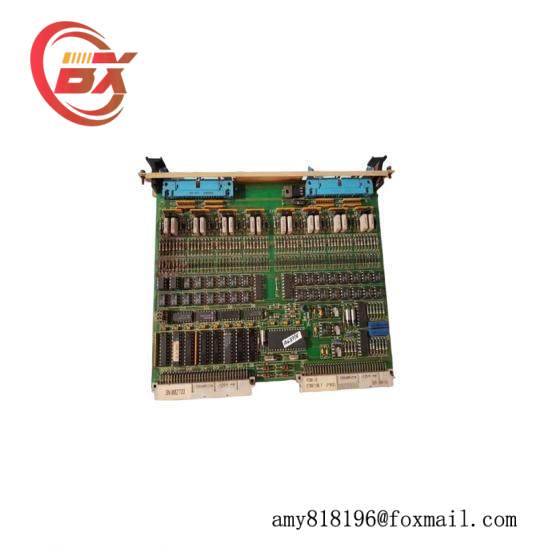

The ABB AI86-16 Analog Input Board 57087196 is engineered for integration into advanced industrial automation systems where precise data acquisition is crucial. This board is equipped with 16 dedicated analog input channels, each capable of handling signals from various sensors and devices, ensuring a wide range of applications can benefit from its high-resolution and high-speed sampling capabilities.
Featuring a compact yet robust design, the AI86-16 is built to withstand challenging industrial environments, with an operating temperature range of -20°C to +70°C and an environmental rating of IP20, making it suitable for both indoor and outdoor installations.
With a 12-bit resolution, this board offers exceptional precision in measuring analog signals, providing reliable data for control systems to make accurate decisions. Its 10 kHz sampling frequency ensures that fast-changing signals are captured without loss of detail, enhancing system responsiveness and efficiency.
The ABB AI86-16 is compatible with a variety of control systems, including programmable logic controllers (PLCs) and distributed control systems (DCS), allowing for seamless integration into existing automation setups. Its modular design facilitates easy installation and maintenance, ensuring minimal downtime during system upgrades or repairs.
To further enhance user experience, the board supports various communication protocols, enabling seamless data exchange with other devices in the network. This compatibility ensures that the AI86-16 can be integrated into complex, multi-vendor automation ecosystems, providing a unified solution for process control and monitoring.
