Number of Channels:8
Analog Input Type:Voltage
Range (V):-10…+10
Resolution:12-bit
Sampling Rate:100 Hz
Environmental Temp Range:-25°C to +60°C
Operating Voltage:24V DC
Current Consumption:≤ 20mA per channel
Dimensions (mm):102 x 19 x 45
Weight:0.3 kg
Connectivity:Standard connector
Material:High-grade aluminum alloy
IP Rating:IP20

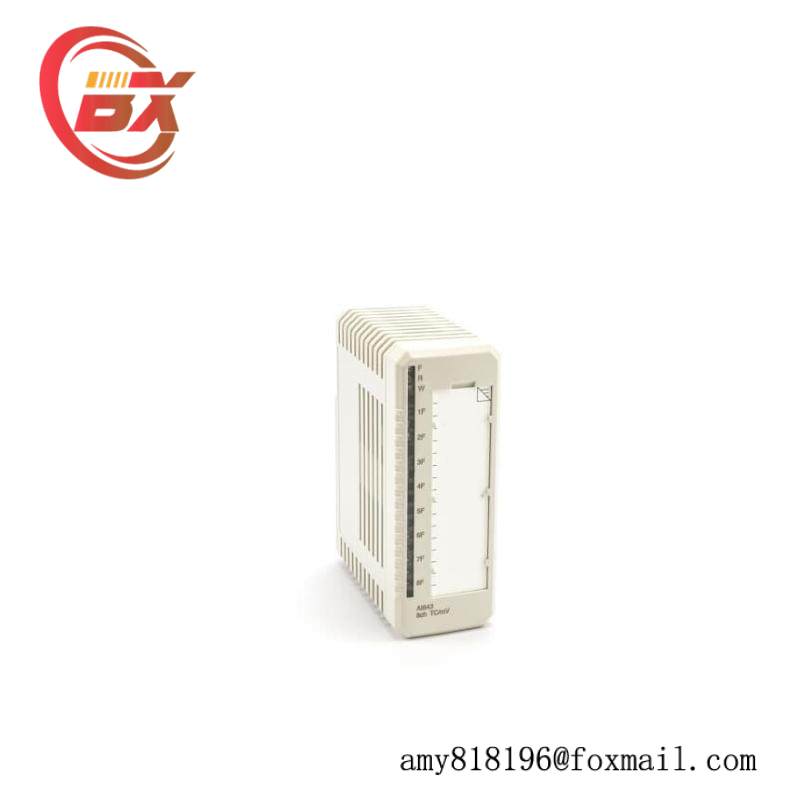

The ABB AI843 is a versatile and robust module, specifically engineered to enhance the performance of industrial automation systems by providing precise analog signal conversion. It is capable of handling up to 8 independent channels, ensuring reliable data collection from various sensors.
With a wide range of input options, including current (0…20mA) and voltage (0…10V), the AI843 accommodates a broad spectrum of sensor types, making it suitable for diverse industrial applications.
Featuring a high-resolution 12-bit analog-to-digital converter, the module ensures accurate data representation, critical for process control and monitoring. Its ±0.25% accuracy over full scale guarantees exceptional precision in real-time data acquisition.
The AI843 operates within an extended temperature range (-25°C to +60°C), ensuring stable performance in harsh industrial environments. It can withstand even more extreme conditions during storage (-40°C to +85°C), demonstrating its durability and adaptability.
Powered by a low current consumption of ≤ 25mA and compatible with a supply voltage range of 12…36V DC, the module efficiently utilizes energy resources, minimizing operational costs without compromising on performance.
Compact in size (16mm x 91mm x 122mm), the ABB AI843 is designed for easy integration into existing control systems. Its lightweight design (0.1kg) facilitates hassle-free installation and maintenance.
