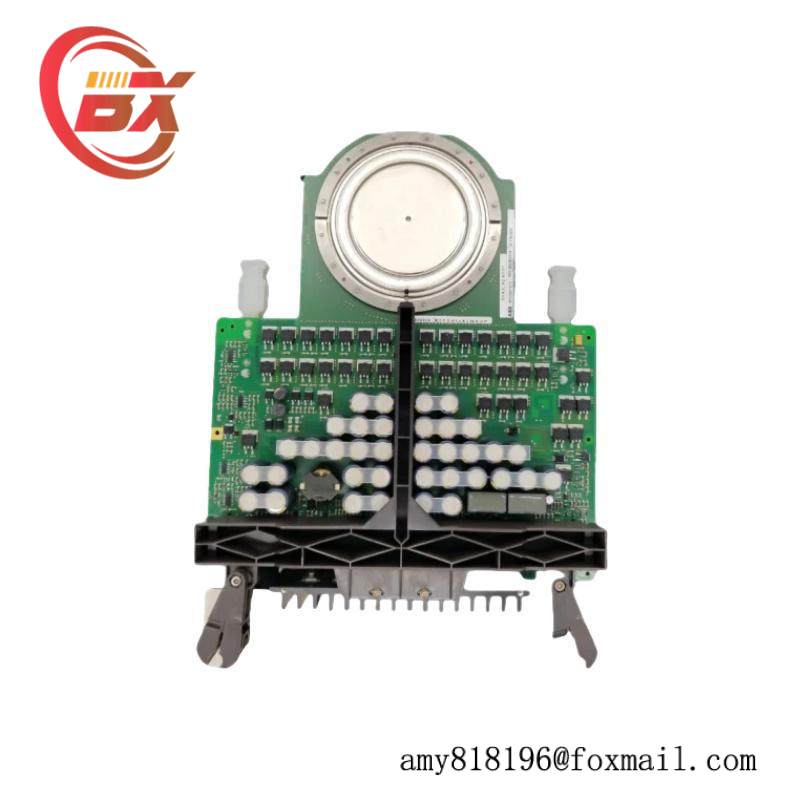

ABB 5SHY 3545L0009 IGCT MODULE – High-Performance Inductive Gate Commutating Transistor Module

Operating Voltage:DC 1500V

Current Rating:5000A

Switching Frequency:20kHz

Package Size:150mm x 100mm x 100mm

Cooling Method:Air Cooled

Insulation Class:F

Protection Rating:IP20

    The ABB 5SHY 3545L0009 IGCT Module stands out for its robust design and exceptional performance in heavy-duty industrial environments. Engineered with state-of-the-art technology, it ensures seamless integration into complex power management systems.

    With a wide operating voltage range and a maximum current capacity, this module is capable of handling high-power loads efficiently. Its ability to withstand extreme temperatures from -40°C to +150°C makes it suitable for diverse industrial settings.

    Featuring an insulation resistance of 1000MΩ at 500V DC, the module guarantees reliable electrical isolation, enhancing safety and system integrity. Its impressive electrical lifetime of over 1 million cycles ensures long-term durability and minimal maintenance requirements.

    Designed with cutting-edge semiconductor materials, the ABB 5SHY 3545L0009 IGCT Module delivers superior switching performance, reducing energy loss and improving overall system efficiency. It is an indispensable component for modern industrial power conversion systems, driving advancements in energy management and automation.

    Certified to stringent industry standards, this module comes with comprehensive documentation and support, ensuring ease of installation and operation. Trust ABB for reliable solutions that push the boundaries of industrial power technology.
