Operating System Compatibility:Various industrial control systems
Data Transmission Rate:Up to 1 Mbps
Bus Type Support:EtherCAT, Profinet, DeviceNet
Power Supply:DC 12V or 24V
Dimensions:84.1mm x 64.8mm x 17.8mm
Connectivity:1x RJ45 connector, 1x M8 connector
Environmental Conditions:Temperature range -25°C to +60°C, Humidity range 5% to 95% RH non-condensing
Certifications:CE, UL, CSA

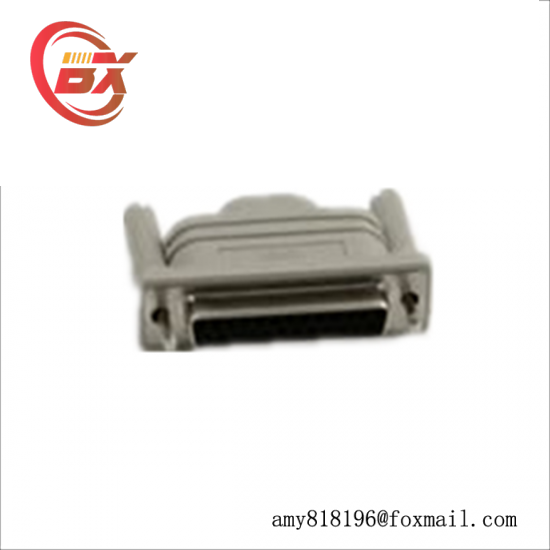

The ABB 3BSC950193R1 Bus Terminator is a critical component for optimizing the performance of industrial control networks. Its compact design ensures seamless integration into various system configurations, while its robust construction withstands harsh environmental conditions commonly found in industrial settings.
Featuring an M12, 8-pin circular connector, this terminator offers a secure and reliable connection, ensuring consistent data transmission and reduced error rates. The device is compatible with a wide range of protocols, making it suitable for integration with diverse control systems.
Designed for applications requiring high reliability and efficiency, the ABB 3BSC950193R1 Bus Terminator supports operating frequencies up to 1 GHz, providing excellent compatibility with modern communication standards. Its termination resistance precisely matches the network’s impedance, eliminating signal reflections and maintaining optimal signal quality throughout the network.
Withstanding temperatures ranging from -40°C to +85°C, this terminator is ideal for use in extreme environments, from freezing cold climates to hot industrial workshops. Its IP67 environmental rating when mated ensures protection against dust and water ingress, safeguarding the device from potential damage.
The ABB 3BSC950193R1 Bus Terminator is crafted from a combination of robust plastic housing and stainless steel connectors, ensuring durability and longevity. Its compact size and lightweight design facilitate easy installation and maintenance, making it a preferred choice for engineers and technicians seeking a reliable solution for their industrial control networks.
