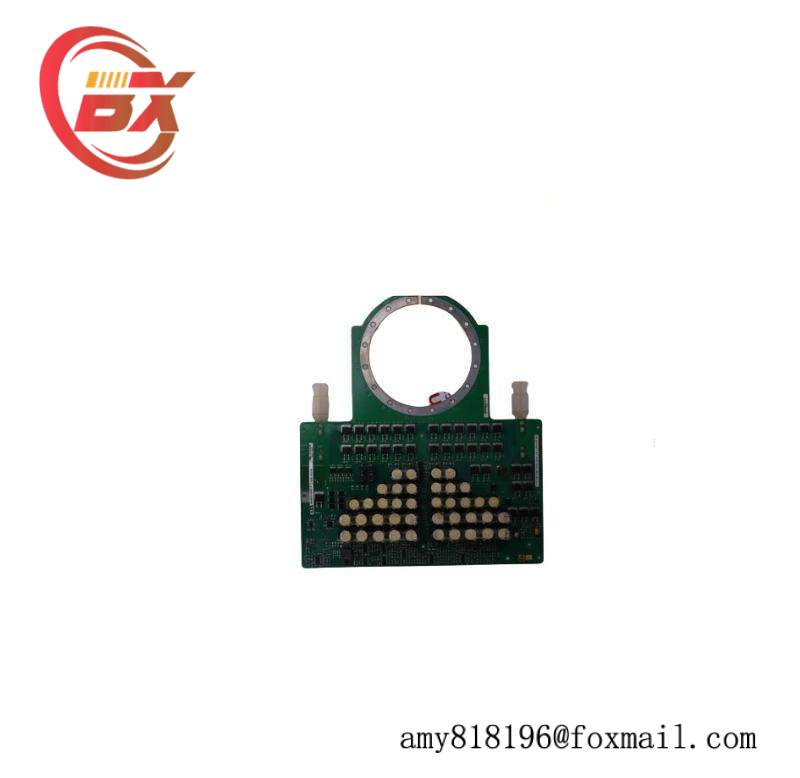

ABB 3BHL000390P0104 – 3BHB003154R0101 – 5SHX1960L0004: High-Performance IGCT Module

Operating Voltage:Up to 690V

Output Current:Flexible range from 100A to 400A

Switching Frequency:Up to 60kHz

Insulation Rating:Class H (180°C)

Cooling Method:Air Cooled

Module Size:250mm x 120mm x 100mm

Weight:Approximately 5kg

    The ABB IGCT MODULE is engineered with robust construction and high reliability, making it suitable for applications requiring high power density and low switching losses.

    Featuring advanced semiconductor technology, this module delivers exceptional performance with minimized energy consumption, enhancing operational efficiency.

    With its compact design and modular architecture, the ABB IGCT MODULE is easily integrated into existing systems, facilitating seamless upgrades and maintenance.

    Equipped with state-of-the-art diagnostic features, the module provides real-time monitoring and alerts for optimal system management and proactive maintenance.

    Certified for safety and compliance with industry standards, this module ensures reliable and secure operation in various industrial sectors, including power generation, manufacturing, and automation.
