Brand:ABB
Model Number:3BHE036342R0101
Sub-Type:XD D501 A101
Module Category:High Voltage Inverter Board
Voltage Rating:Up to 10kV
Power Output:Up to 1000 kW
Operating Frequency:40-60 Hz
Control Protocol:Profibus DP, CANopen
Environment Temperature Range:-25°C to +60°C
Protection Class:IP20

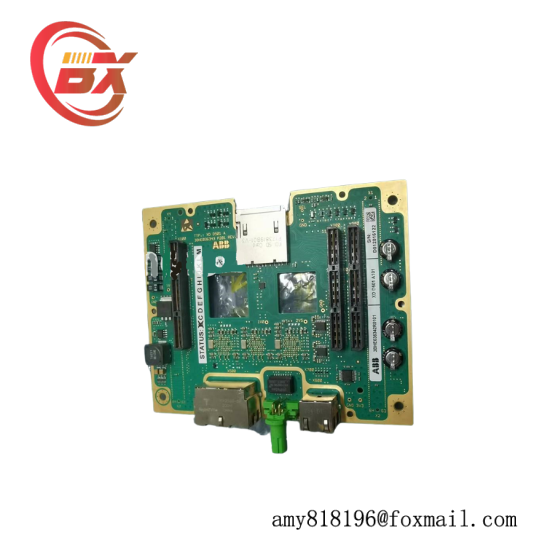

The ABB 3BHE036342R0101 XD D501 A101 High-Voltage Inverter Board is engineered to deliver exceptional performance in high-voltage industrial settings, offering unparalleled efficiency in power conversion.
Featuring advanced vector control technology, this inverter board ensures precise speed control, making it ideal for demanding applications such as electric drives and motors in heavy industries.
With an operating voltage range of 690 VAC and a maximum output power of 1000 kW, it is capable of handling large-scale power requirements, enhancing productivity and energy savings.
Equipped with robust protection features including IP54 classification, it ensures reliable operation in various environmental conditions, from industrial workshops to outdoor installations.
The integrated Modbus TCP/IP and Ethernet IP interfaces provide seamless connectivity with existing systems, facilitating easy integration into complex automation networks.
