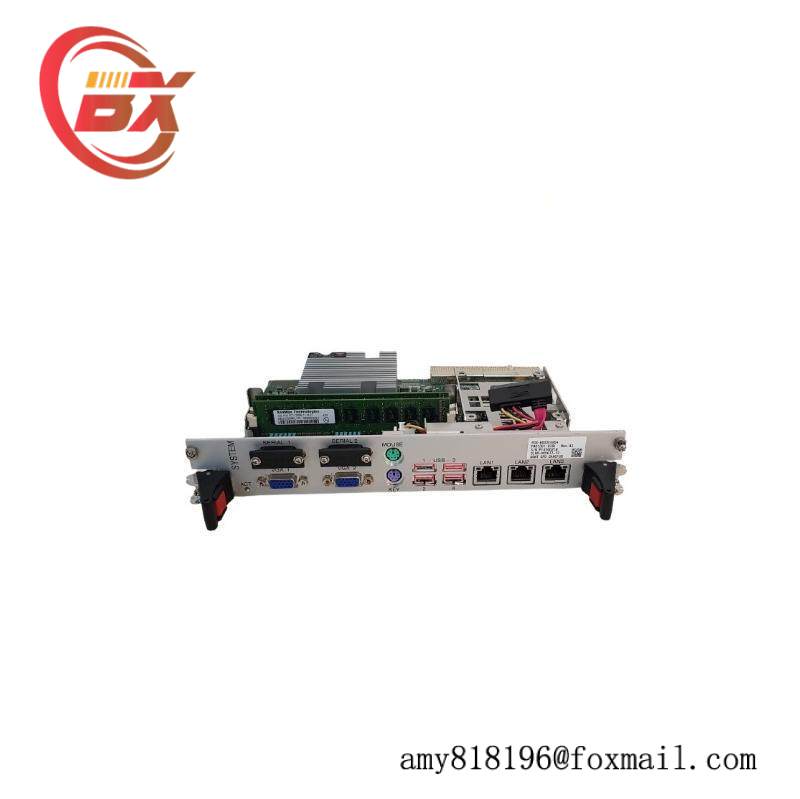

AB System PDS-BX02E0954, PA03381-B393 Controller Board

Model Number:PDS-BX02E0954 PA03381-B393

Processor Type:Advanced Microcontroller

Operating System:AB ControlNet Compatible

Memory Capacity:128 MB RAM, 16 MB Flash

Processing Speed:1 GHz

Communication Interface:Ethernet, RS-485, CANopen

Power Consumption:12 VDC, 1 A

Dimensions:140 mm x 100 mm

Weight:0.25 kg

    The AB System PDS-BX02E0954, PA03381-B393 Controller Board integrates seamlessly into complex industrial automation systems, offering unparalleled performance and reliability. This controller board is equipped with an advanced microcontroller and supports a variety of communication interfaces, including Ethernet, RS-485, and CANopen, ensuring robust data exchange with other devices in the network.

    Featuring a high-speed processing capability of 1 GHz, it ensures rapid execution of control algorithms and operations, enhancing the overall efficiency and productivity of manufacturing processes. With a memory capacity of 128 MB RAM and 16 MB Flash, it provides ample storage for program execution and data retention.

    Equipped with an Ethernet interface, this controller board facilitates easy connectivity to the internet, enabling remote monitoring and control via web browsers or specialized software tools. The inclusion of RS-485 and CANopen interfaces caters to traditional industrial networking standards, allowing for compatibility with a wide range of devices and systems.

    Operated on a reliable 12 VDC power supply with a current draw of 1 A, the controller board ensures stable operation under various environmental conditions. Its compact size (140 mm x 100 mm) and lightweight design (0.25 kg) make it ideal for installation in confined spaces, without compromising on functionality.

    This controller board comes with a comprehensive set of diagnostic features, including real-time performance monitoring and error logging, facilitating quick identification and resolution of issues. It supports multiple programming languages, including ladder logic, function block diagrams, and structured text, catering to the diverse needs of system integrators and engineers.
