Board Type:PCB Gate Drive
Model Number:1336-BDB-SP18D
Manufacturing Technology:Advanced semiconductor technology
Operating Temperature Range:-40°C to +85°C
Input Voltage:DC 10V to 40V
Output Current:Continuous: 10A, Peak: 20A
Switching Frequency:Up to 20 kHz
Insulation Resistance:≥ 10MΩ @ 500V DC

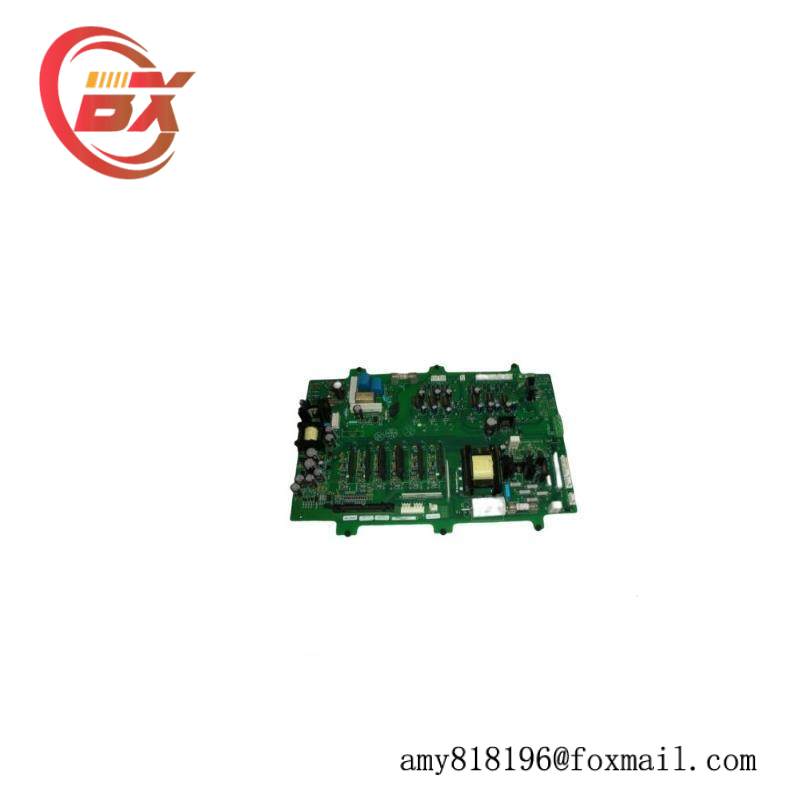

This PCB Gate Drive Board from AB Electronics is specifically engineered for use in complex industrial control systems requiring high power and precision. It utilizes state-of-the-art MOSFET technology to deliver exceptional performance in power management applications.
Featuring an operating voltage range of 12-30V DC and a maximum current capability of 100A, this board is designed to handle a wide variety of power demands efficiently. Its ability to operate at frequencies up to 20kHz ensures rapid response times and reduced switching losses.
The board’s modular design facilitates easy integration into existing systems, allowing for seamless upgrading and maintenance. It supports both digital and analog input signals, providing flexibility in system configuration.
Built with robust materials and subjected to rigorous testing, this board operates within an extensive temperature range (-40°C to +85°C), ensuring reliable performance in various environmental conditions. The panel mount design allows for secure installation on control panels.
Safety and compliance are paramount, making this board UL, CE, and RoHS certified, ensuring it meets international safety standards and environmental regulations. It’s a premium choice for industrial automation projects demanding high reliability and efficiency.
