Manufacturer:Allen-Bradley
Model:1756-IF6I
Type:AI Module
Isolation:Yes
Channels:6
Analog Input Range:4-20mA, 0-5V, 0-10V
Sampling Rate:5 samples per cycle
Data Format:Signed 16-bit
Communication Compatibility:ControlNet, DeviceNet, EtherNet/IP
Enclosure Type:IP20
Power Consumption:1.5W
Environmental Conditions:Operating temperature: 0°C to 55°C, Storage temperature: -40°C to 85°C
Vibration Resistance:Up to 5g
Shock Resistance:Up to 50g
Connection:Terminal block
Connector Type:DB9

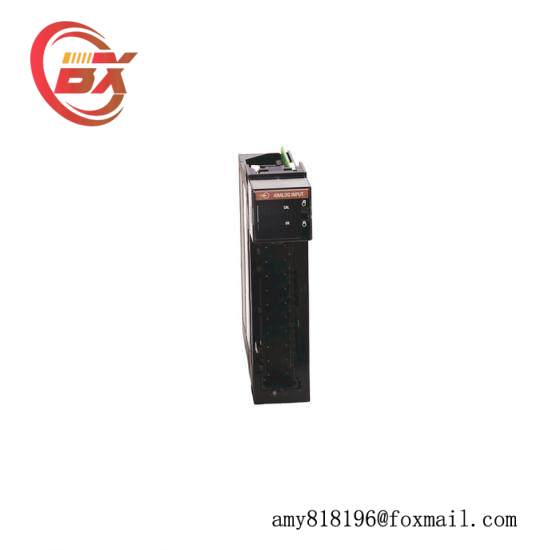

The Allen-Bradley 1756-IF6I ControlLogix 6-Point Isolated AI Module is designed to meet the stringent requirements of modern industrial automation systems, providing reliable and accurate analog signal acquisition.
Each channel offers high isolation (1000 Vrms) from the power supply and other channels, ensuring robust performance in noisy environments.
With its wide signal range of -20 to +60 VDC and an accuracy of ±0.25% of full scale, this module ensures precise data acquisition for critical applications.
Featuring a sampling rate up to 1 kHz, it supports fast response times, ideal for dynamic processes requiring high-frequency measurements.
The module’s open type enclosure and compatibility with ControlLogix systems simplify integration into existing industrial networks, enhancing system efficiency and flexibility.
