Number of Channels:4
Input Range:-20 to 20 V
Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Max)
Output Range:-10 to 10 V – 1 LSB
Full Scale:10 VDC
Overvoltage Protection:7.5 VAC RMS
Backplane Current Draw:35 mA at 5 V, 85 mA at 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type

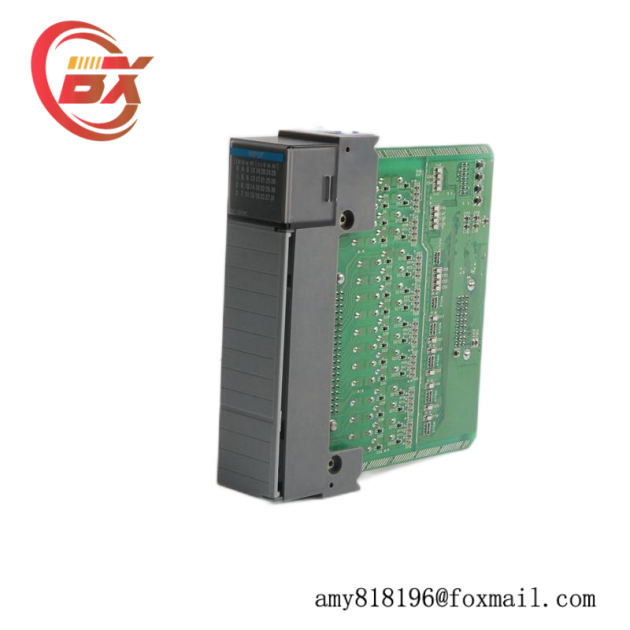

The AB 1746-NI4 modules boast an impressive feature set designed to enhance the functionality of your Allen-Bradley PLC systems. With high-resolution analog inputs, these modules ensure accurate measurement of voltage and current within industrial automation setups.
Each module supports four channels, providing versatile connectivity for a variety of sensors and actuators. This flexibility is crucial in diverse industrial applications where precise control over processes is paramount.
Equipped with robust overvoltage protection, the AB 1746-NI4 modules safeguard against electrical surges, ensuring continuous operation even under challenging conditions. This reliability is essential for maintaining system stability in harsh industrial environments.
The inclusion of backplane current draw specifications allows for efficient power management within your system. With a draw of 55 mA at 5 V and 85 mA at 24 V, these modules can seamlessly integrate into various PLC configurations without compromising performance.
Moreover, the AB 1746-NI4 modules adhere to international standards, ensuring compatibility and interchangeability with other Allen-Bradley components. This standardization streamlines integration and maintenance processes, making it easier to manage your industrial automation infrastructure.
