AB 1746-IV16 Analog Input Module, High Precision, Industrial Control

In stock

The AB 1746-IV16 Analog Input Module is designed for seamless integration into Allen-Bradley’s programmable logic controller systems, offering high-resolution, multi-channel analog input capabilities for precise data acquisition.

Product Type:Analog Input Module

Model Number:1746-IV16

Manufacturer:Allen-Bradley

Number of Channels:16

Input Voltage Range:10-30 VDC

Absolute Input Voltage:+/- 15 VDC

Input Range:-10 to +10 VDC

Common Mode Voltage Range:-20 to +20 VDC

Current Input Range:-20 to +20 mA

Overvoltage Protection:7.5 VAC RMS

Isolation Voltage:500 VDC

Backplane Current Consumption:≤ 50 mA at 5 VDC

Operating Temperature:-40°C to +85°C

Storage Temperature:-55°C to +150°C

The AB 1746-IV16 Analog Input Module is an essential component for any industrial automation setup, providing unparalleled precision and reliability in data collection.

With its high-resolution, multi-channel design, this module ensures accurate and consistent readings across various industrial applications, making it suitable for environments requiring high sensitivity and responsiveness.

Built with robust materials and advanced technology, the AB 1746-IV16 is designed for long-term durability and minimal maintenance, ensuring smooth operation in demanding industrial conditions.

Installation is straightforward and compatible with all Allen-Bradley SLC 500 series controllers, allowing for quick integration without requiring extensive setup or additional hardware.

This input module supports a wide range of voltage inputs, from -20 to +20 VDC, making it adaptable to different industrial standards and ensuring compatibility across various equipment and systems.

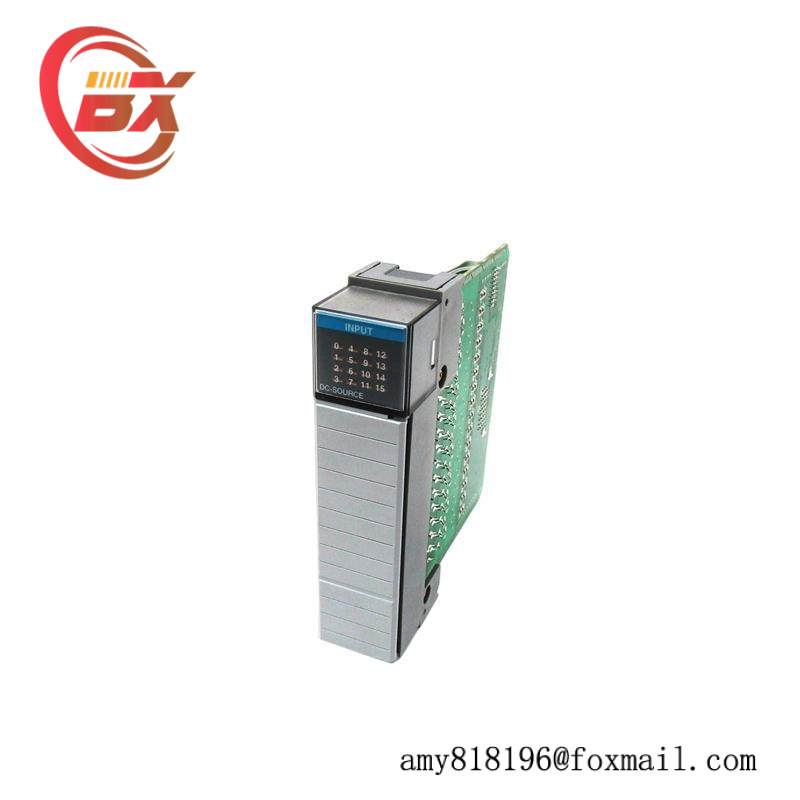

AB 1746-IV16 INPUT MODULE
